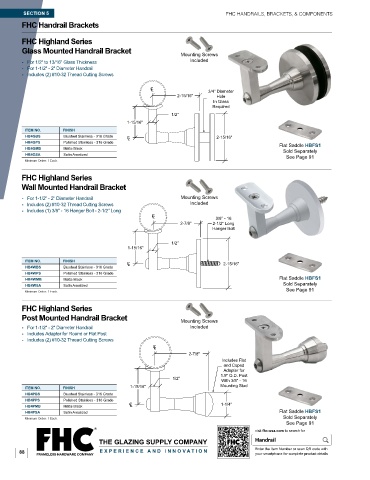

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Highland Series
Glass Mounted Handrail Bracket
Mounting Screws
Included
- For 1/2" to 13/16" Glass Thickness
- For 1-1/2" - 2" Diameter Handrail
- Includes (2) #10-32 Thread Cutting Screws

C L
3/4" Diameter
2-15/16" Hole
In Glass
Required
1/2"
1-15/16"
ITEM NO. FINISH
HB4GBS Brushed Stainless - 316 Grade 2-15/16"
C L
HB4GPS Polished Stainless - 316 Grade Flat Saddle HBFS1
HB4GMB Matte Black
Sold Separately
HB4GSA Satin Anodized
See Page 91
Minimum Order: 1 Each.
FHC Highland Series
Wall Mounted Handrail Bracket
- For 1-1/2" - 2" Diameter Handrail Mounting Screws
- Includes (2) #10-32 Thread Cutting Screws Included
- Includes (1) 3/8" - 16 Hanger Bolt - 2-1/2" Long
C L
3/8" - 16
2-7/8" 2-1/2" Long
Hanger Bolt

1/2"
1-15/16"
ITEM NO. FINISH
C L 2-15/16"
HB4WBS Brushed Stainless - 316 Grade
HB4WPS Polished Stainless - 316 Grade
HB4WMB Matte Black Flat Saddle HBFS1
HB4WSA Satin Anodized Sold Separately
See Page 91
Minimum Order: 1 Each.

FHC Highland Series
Post Mounted Handrail Bracket
Mounting Screws
- For 1-1/2" - 2" Diameter Handrail Included
- Includes Adapter for Round or Flat Post
- Includes (2) #10-32 Thread Cutting Screws
C L
2-7/8"
Includes Flat
and Coped
Adapter for
1.9" O.D. Post
1/2"
With 3/8" - 16
ITEM NO. FINISH 1-15/16" Mounting Stud
HB4PBS Brushed Stainless - 316 Grade
HB4PPS Polished Stainless - 316 Grade
HB4PMB Matte Black C L 1-1/4"
HB4PSA Satin Anodized Flat Saddle HBFS1
Minimum Order: 1 Each. Sold Separately
See Page 91
