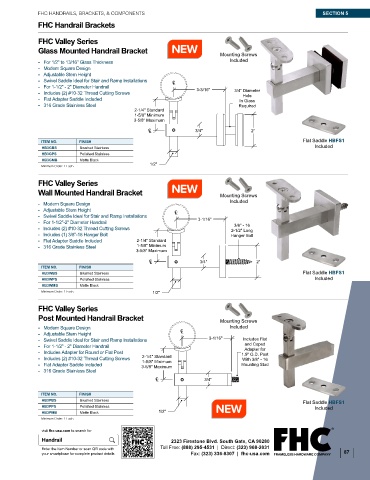

FHC Handrail Brackets

FHC Valley Series
Glass Mounted Handrail Bracket
Mounting Screws
- For 1/2" to 13/16" Glass Thickness Included
- Modern Square Design
- Adjustable Stem Height
- Swivel Saddle Ideal for Stair and Ramp Installations C L
- For 1-1/2" - 2" Diameter Handrail 3-3/16"
- Includes (2) #10-32 Thread Cutting Screws 3/4" Diameter
Hole
- Flat Adapter Saddle Included In Glass
- 316 Grade Stainless Steel Required
2-1/4" Standard
1-5/8" Minimum
3-5/8" Maximum
C L 3/4" 2"

ITEM NO. FINISH Flat Saddle HBFS1
HB3GBS Brushed Stainless Included
HB3GPS Polished Stainless
HB3GMB Matte Black
1/2"
Minimum Order: 1 Each.

FHC Valley Series
Wall Mounted Handrail Bracket Mounting Screws
- Modern Square Design Included
- Adjustable Stem Height C L
- Swivel Saddle Ideal for Stair and Ramp Installations
- For 1-1/2"-2" Diameter Handrail 3-1/16"
3/8" - 16
- Includes (2) #10-32 Thread Cutting Screws 2-1/2" Long
- Includes (1) 3/8"-16 Hanger Bolt Hanger Bolt
- Flat Adapter Saddle Included 2-1/4" Standard
- 316 Grade Stainless Steel 1-5/8" Minimum
3-5/8" Maximum

C L 3/4" 2"
ITEM NO. FINISH
HB3WBS Brushed Stainless Flat Saddle HBFS1
HB3WPS Polished Stainless Included
HB3WMB Matte Black
Minimum Order: 1 Each. 1/2"
FHC Valley Series
Post Mounted Handrail Bracket Mounting Screws

- Modern Square Design Included
- Adjustable Stem Height C L
- Swivel Saddle Ideal for Stair and Ramp Installations 3-1/16" Includes Flat
- For 1-1/2" - 2" Diameter Handrail and Coped
Adapter for
- Includes Adapter for Round or Flat Post 1.9" O.D. Post
- Includes (2) #10-32 Thread Cutting Screws 2-1/4" Standard With 3/8" - 16
1-5/8" Minimum
- Flat Adapter Saddle Included 3-5/8" Maximum Mounting Stud
- 316 Grade Stainless Steel
C L 3/4"

ITEM NO. FINISH
HB3PBS Brushed Stainless Flat Saddle HBFS1
HB3PPS Polished Stainless Included
HB3PMB Matte Black 1/2"
Minimum Order: 1 Each.
