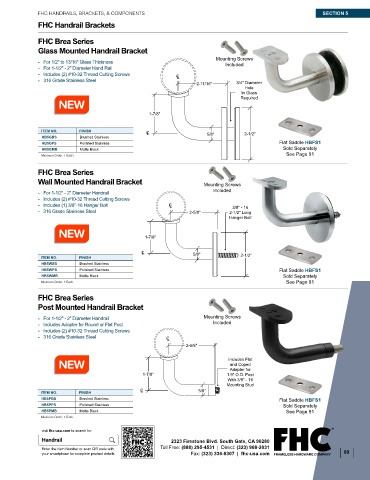

Page 103 - FHC FGR24R Architectural Railing Systems

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets

FHC Brea Series
Glass Mounted Handrail Bracket
Mounting Screws
- For 1/2" to 13/16" Glass Thickness
Included
- For 1-1/2" - 2" Diameter Hand Rail
- Includes (2) #10-32 Thread Cutting Screws
C L
- 316 Grade Stainless Steel
2-11/16" 3/4" Diameter
Hole
In Glass
Required
1-7/8"

ITEM NO. FINISH
C L 5/8" 2-1/2"
HB5GBS Brushed Stainless
HB5GPS Polished Stainless Flat Saddle HBFS1
HB5GMB Matte Black Sold Separately
Minimum Order: 1 Each. See Page 91
FHC Brea Series
Wall Mounted Handrail Bracket
Mounting Screws
Included
- For 1-1/2" - 2" Diameter Handrail
- Includes (2) #10-32 Thread Cutting Screws
- Includes (1) 3/8"-16 Hanger Bolt C L
3/8" - 16
- 316 Grade Stainless Steel 2-5/8" 2-1/2" Long
Hanger Bolt

1-7/8"

C L 5/8"
ITEM NO. FINISH 2-1/2"
HB5WBS Brushed Stainless
HB5WPS Polished Stainless Flat Saddle HBFS1
HB5WMB Matte Black Sold Separately
Minimum Order: 1 Each. See Page 91
FHC Brea Series
Post Mounted Handrail Bracket

Mounting Screws
- For 1-1/2" - 2" Diameter Handrail
Included
- Includes Adapter for Round or Flat Post
- Includes (2) #10-32 Thread Cutting Screws
- 316 Grade Stainless Steel C L
2-5/8"

Includes Flat
and Coped
Adapter for
1-7/8" 1.9" O.D. Post
With 3/8" - 16
Mounting Stud
ITEM NO. FINISH C L 5/8"
HB5PBS Brushed Stainless Flat Saddle HBFS1
HB5PPS Polished Stainless Sold Separately
HB5PMB Matte Black See Page 91
Minimum Order: 1 Each.
