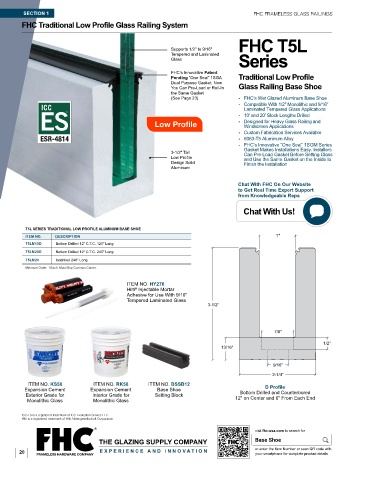

Page 34 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC Traditional Low Profile Glass Railing System

FHC T5L

Supports 1/2" to 9/16"
Tempered and Laminated
Glass Series
FHC’s Innovative Patent
Pending “One Seal” 1SGA Traditional Low Profile
Dual Purpose Gasket. Now Glass Railing Base Shoe
You Can Pre-Load or Roll-In
the Same Gasket
(See Page 23) - FHC’s Wet Glazed Aluminum Base Shoe
- Compatible With 1/2" Monolithic and 9/16"
ICC Laminated Tempered Glass Applications
ICC
- 10' and 20' Stock Lengths Drilled
- Designed for Heavy Glass Railing and
Low Profile Windscreen Applications
- Custom Fabrication Services Available
ESR-4814
ESR-4814 - 6063-T5 Aluminum Alloy
- FHC’s Innovative “One Seal” 1SGM Series
3-1/2" Tall Gasket Makes Installations Easy. Installers
Can Pre-Load Gasket Before Setting Glass
Low Profile and Use the Same Gasket on the Inside to
Design Solid Finish the Installation
Aluminum
Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps
Chat With Us!

T5L SERIES TRADITIONAL LOW PROFILE ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION 1"
T5LM10D Bottom Drilled 12" C.T.C. 120" Long
T5LM20D Bottom Drilled 12" C.T.C. 240" Long
T5LM20 Undrilled 240" Long
Minimum Order: 1 Each. Must Ship Common Carrier.

ITEM NO. HY270
Hilti Injectable Mortar
®
Adhesive for Use With 9/16"
Tempered Laminated Glass
3-1/2"

7/8"
1/2"
13/16"

9/16"
2-1/4"
ITEM NO. KS50 ITEM NO. RK50 ITEM NO. BSSB12
Expansion Cement Expansion Cement Base Shoe D Profile
Exterior Grade for Interior Grade for Setting Block Bottom Drilled and Counterbored
Monolithic Glass Monolithic Glass 12" on Center and 6" From Each End

ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe
20 EXPERIENCE AND INNOV A TION or enter the Item Number or scan QR code with
your smartphone for complete product details
