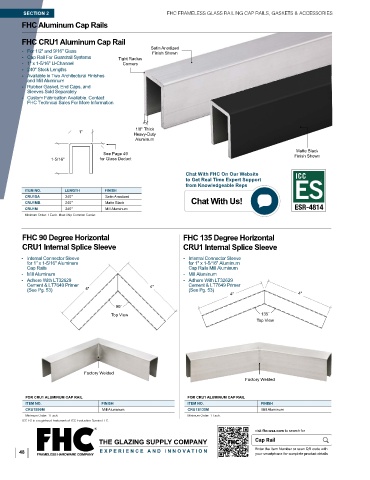

Page 62 - FHC FGR24R Architectural Railing Systems

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES

FHC Aluminum Cap Rails

FHC CRU1 Aluminum Cap Rail
Satin Anodized
- For 1/2" and 9/16" Glass
Finish Shown
- Cap Rail For Guardrail Systems Tight Radius
- 1" x 1-5/16" U-Channel Corners
- 240" Stock Lengths
- Available in Two Architectural Finishes
and Mill Aluminum
- Rubber Gasket, End Caps, and
Sleeves Sold Separately
- Custom Fabrication Available. Contact
FHC Technical Sales For More Information

1/8" Thick
1"
Heavy-Duty
Aluminum
Matte Black
See Page 49 Finish Shown
1-5/16" for Glass Deduct

Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps
ITEM NO. LENGTH FINISH
CRU1SA 240" Satin Anodized
CRU1MB 240" Matte Black Chat With Us!
CRU1M 240" Mill Aluminum ESR-4814
Minimum Order: 1 Each. Must Ship Common Carrier.

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRU1 Internal Splice Sleeve CRU1 Internal Splice Sleeve

- Internal Connector Sleeve - Internal Connector Sleeve
for 1" x 1-5/16" Aluminum for 1" x 1-5/16" Aluminum
Cap Rails Cap Rails Mill Aluminum
- Mill Aluminum - Mill Aluminum
- Adhere With LT32629 - Adhere With LT32629
Cement & LT7649 Primer 4" Cement & LT7649 Primer
(See Pg. 53) 4" (See Pg. 53)
4" 4"
90˚
Top View 135˚
Top View

Factory Welded
Factory Welded

FOR CRU1 ALUMINUM CAP RAIL FOR CRU1 ALUMINUM CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRU1S90M Mill Aluminum CRU1S135M Mill Aluminum
Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
48 EXPERIENCE AND INNOV A TION your smartphone for complete product details
