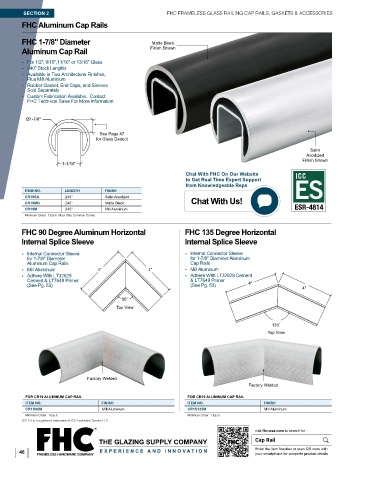

Page 60 - FHC FGR24R Architectural Railing Systems

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES

FHC Aluminum Cap Rails

FHC 1-7/8" Diameter Matte Black
Finish Shown
Aluminum Cap Rail
- For 1/2", 9/16",11/16" or 13/16" Glass
- 240" Stock Lengths
- Available in Two Architectural Finishes,
Plus Mill Aluminum
- Rubber Gasket, End Caps, and Sleeves
Sold Separately
- Custom Fabrication Available. Contact
FHC Technical Sales For More Information

Ø1-7/8"

See Page 47
for Glass Deduct

Satin
Anodized
Finish Shown
1-1/16"
Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps
ITEM NO. LENGTH FINISH
CR19SA 240" Satin Anodized
CR19MB 240" Matte Black Chat With Us!
ESR-4814
CR19M 240" Mill Aluminum
Minimum Order: 1 Each. Must Ship Common Carrier.
FHC 90 Degree Aluminum Horizontal FHC 135 Degree Horizontal
Internal Splice Sleeve Internal Splice Sleeve

- Internal Connector Sleeve - Internal Connector Sleeve
for 1-7/8" Diameter for 1-7/8" Diameter Aluminum
Aluminum Cap Rails Cap Rails
- Mill Aluminum 4" 4" - Mill Aluminum
- Adhere With LT32629 - Adhere With LT32629 Cement
Cement & LT7649 Primer & LT7649 Primer 4"
(See Pg. 53) (See Pg. 53)
4"
90˚
Top View

135˚
Top View

Factory Welded
Factory Welded

FOR CR19 ALUMINUM CAP RAIL FOR CR19 ALUMINUM CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CR1S90M Mill Aluminum CR1S135M Mill Aluminum
Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
46 EXPERIENCE AND INNOV A TION your smartphone for complete product details
