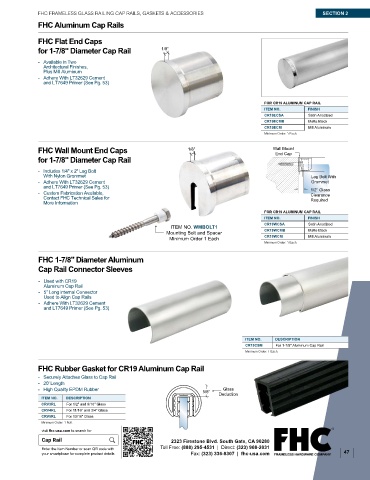

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2

FHC Aluminum Cap Rails

FHC Flat End Caps
for 1-7/8" Diameter Cap Rail 1/8"
- Available in Two
Architectural Finishes,
Plus Mill Aluminum
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

FOR CR19 ALUMINUM CAP RAIL
ITEM NO. FINISH
CR19ECSA Satin Anodized
CR19ECMB Matte Black
CR19ECM Mill Aluminum
Minimum Order: 1 Each.

FHC Wall Mount End Caps 1/8" Wall Mount
End Cap
for 1-7/8" Diameter Cap Rail

- Includes 1/4" x 2" Lag Bolt
With Nylon Grommet Lag Bolt With
- Adhere With LT32629 Cement Grommet
and LT7649 Primer (See Pg. 53)
1/2" Glass
- Custom Fabrication Available, Clearance
Contact FHC Technical Sales for Required
More Information
FOR CR19 ALUMINUM CAP RAIL
ITEM NO. FINISH
CR19WCSA Satin Anodized
ITEM NO. WMBOLT1
CR19WCMB Matte Black
Mounting Bolt and Spacer
CR19WCM Mill Aluminum
Minimum Order 1 Each
Minimum Order: 1 Each.
FHC 1-7/8" Diameter Aluminum
Cap Rail Connector Sleeves

- Used with CR19
Aluminum Cap Rail
- 5" Long internal Connector
Used to Align Cap Rails
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

ITEM NO. DESCRIPTION
CR19CSM For 1-7/8" Aluminum Cap Rail
Minimum Order: 1 Each.

FHC Rubber Gasket for CR19 Aluminum Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length
- High Quality EPDM Rubber Glass
5/8"
Deduction
ITEM NO. DESCRIPTION
CRV3RL For 1/2" and 9/16" Glass
CRV4RL For 11/16" and 3/4" Glass
CRV5RL For 13/16" Glass
Minimum Order: 1 Roll.
