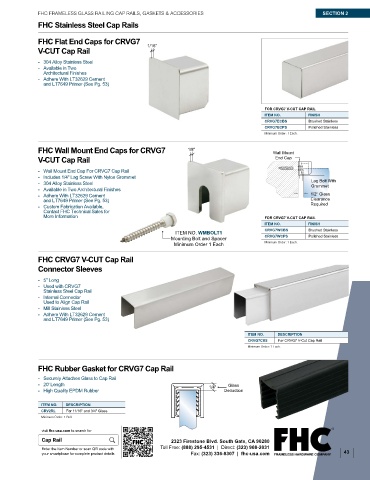

Page 57 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2
FHC Stainless Steel Cap Rails

FHC Flat End Caps for CRVG7
V-CUT Cap Rail 1/16"

- 304 Alloy Stainless Steel
- Available in Two
Architectural Finishes
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

FOR CRVG7 V-CUT CAP RAIL
ITEM NO. FINISH
CRVG7ECBS Brushed Stainless
CRVG7ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Wall Mount End Caps for CRVG7 1/8" Wall Mount
V-CUT Cap Rail End Cap

- Wall Mount End Cap For CRVG7 Cap Rail
- Includes 1/4" Lag Screw With Nylon Grommet
- 304 Alloy Stainless Steel Lag Bolt With
Grommet
- Available in Two Architectural Finishes

- Adhere With LT32629 Cement 1/2" Glass
and LT7649 Primer (See Pg. 53) Clearance
- Custom Fabrication Available, Required
Contact FHC Technical Sales for
More Information FOR CRVG7 V-CUT CAP RAIL
ITEM NO. FINISH
ITEM NO. WMBOLT1 CRVG7WCBS Brushed Stainless
Mounting Bolt and Spacer CRVG7WCPS Polished Stainless
Minimum Order 1 Each Minimum Order: 1 Each.
FHC CRVG7 V-CUT Cap Rail
Connector Sleeves

- 5" Long
- Used with CRVG7
Stainless Steel Cap Rail
- Internal Connector
Used to Align Cap Rail
- Mill Stainless Steel
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

ITEM NO. DESCRIPTION
CRVG7CSS For CRVG7 V-Cut Cap Rail
Minimum Order: 1 Each.

FHC Rubber Gasket for CRVG7 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length 1/4" Glass
- High Quality EPDM Rubber Deduction

ITEM NO. DESCRIPTION
CRV2RL For 11/16" and 3/4" Glass
Minimum Order: 1 Roll.
visit fhc-usa.com to search for
Cap Rail 2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031 43
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com
