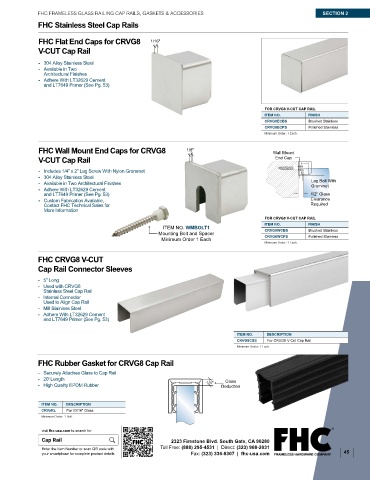

Page 59 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2

FHC Stainless Steel Cap Rails

FHC Flat End Caps for CRVG8 1/16"
V-CUT Cap Rail

- 304 Alloy Stainless Steel
- Available in Two
Architectural Finishes
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

FOR CRVG8 V-CUT CAP RAIL
ITEM NO. FINISH
CRVG8ECBS Brushed Stainless
CRVG8ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Wall Mount End Caps for CRVG8 1/8" Wall Mount
V-CUT Cap Rail End Cap

- Includes 1/4" x 2" Lag Screw With Nylon Grommet
- 304 Alloy Stainless Steel
Lag Bolt With
- Available in Two Architectural Finishes
Grommet
- Adhere With LT32629 Cement

and LT7649 Primer (See Pg. 53) 1/2" Glass
- Custom Fabrication Available, Clearance
Contact FHC Technical Sales for Required
More Information
FOR CRVG8 V-CUT CAP RAIL
ITEM NO. FINISH
ITEM NO. WMBOLT1
CRVG8WCBS Brushed Stainless
Mounting Bolt and Spacer
CRVG8WCPS Polished Stainless
Minimum Order 1 Each
Minimum Order: 1 Each.
FHC CRVG8 V-CUT
Cap Rail Connector Sleeves
- 5" Long
- Used with CRVG8
Stainless Steel Cap Rail
- Internal Connector
Used to Align Cap Rail
- Mill Stainless Steel
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

ITEM NO. DESCRIPTION
CRVG8CSS For CRVG8 V-Cut Cap Rail
Minimum Order: 1 Each.

FHC Rubber Gasket for CRVG8 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length
1/4" Glass
- High Quality EPDM Rubber Deduction

ITEM NO. DESCRIPTION
CRV5RL For 13/16" Glass
Minimum Order: 1 Roll.
visit fhc-usa.com to search for
Cap Rail 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 45
