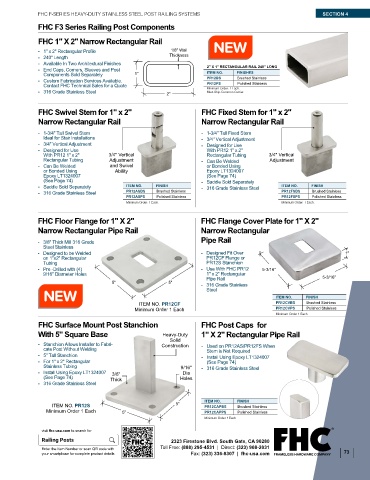

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F3 Series Railing Post Components

FHC 1" X 2" Narrow Rectangular Rail

- 1" x 2" Rectangular Profile 1/8" Wall
- 240" Length Thickness
- Available In Two Architectural Finishes
- End Caps, Corners, Sleeves and Post 2" X 1" RECTANGULAR RAIL 240" LONG
Components Sold Separately 1" ITEM NO. FINISHES
- Custom Fabrication Services Available. PR12BS Brushed Stainless
Contact FHC Technical Sales for a Quote PR12PS Polished Stainless
- 316 Grade Stainless Steel 2" Minimum Order: 1 Each.
Must Ship Common Carrier.

FHC Swivel Stem for 1" x 2" FHC Fixed Stem for 1" x 2"
Narrow Rectangular Rail Narrow Rectangular Rail

- 1-3/4" Tall Swivel Stem - 1-3/4" Tall Fixed Stem
Ideal for Stair Installations - 3/4" Vertical Adjustment
- 3/4" Vertical Adjustment - Designed for Use
- Designed for Use With PR12 1" x 2"
With PR12 1" x 2" 3/4" Vertical Rectangular Tubing 3/4" Vertical
Rectangular Tubing Adjustment - Can Be Welded Adjustment
- Can Be Welded and Swivel or Bonded Using
or Bonded Using Ability Epoxy LT1324007
Epoxy LT1324007 (See Page 74)
(See Page 74) - Saddle Sold Separately
- Saddle Sold Separately ITEM NO. FINISH - 316 Grade Stainless Steel ITEM NO. FINISH
- 316 Grade Stainless Steel PR12ASBS Brushed Stainless PR12FSBS Brushed Stainless
PR12ASPS Polished Stainless PR12FSPS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Floor Flange for 1" X 2" FHC Flange Cover Plate for 1" X 2"
Narrow Rectangular Pipe Rail Narrow Rectangular

- 3/8" Thick Mill 316 Grade Pipe Rail
Steel Stainless
- Designed to be Welded - Designed Fit Over 1"
on 1"x2" Rectangular PR12CF Flange or
Tubing PR12S Stanchion
- Pre -Drilled with (4) - Use With FHC PR12 5-3/16"
9/16" Diameter Holes 1" x 2" Rectangular
Pipe Rail 5-3/16"
5" 5"
- 316 Grade Stainless
Steel
ITEM NO. FINISH
ITEM NO. PR12CF PR12CVBS Brushed Stainless
Minimum Order 1 Each PR12CVPS Polished Stainless
Minimum Order 1 Each
FHC Surface Mount Post Stanchion FHC Post Caps for
With 5" Square Base Heavy-Duty 1" X 2" Rectangular Pipe Rail
Solid
- Stanchion Allows Installer to Fabri- Construction - Used on PR12AS/PR12FS When
cate Post Without Welding Stem is Not Required
- 5" Tall Stanchion - Install Using Epoxy LT1324007
- For 1" x 2" Rectangular (See Page 74)
Stainless Tubing 9/16" - 316 Grade Stainless Steel
- Install Using Epoxy LT1324007 3/8" Dia
(See Page 74) Thick Holes
- 316 Grade Stainless Steel

ITEM NO. PR12S 5" ITEM NO. FINISH
Brushed Stainless
PR12CAPBS
Minimum Order 1 Each 5" PR12CAPPS Polished Stainless
Minimum Order 1 Each
