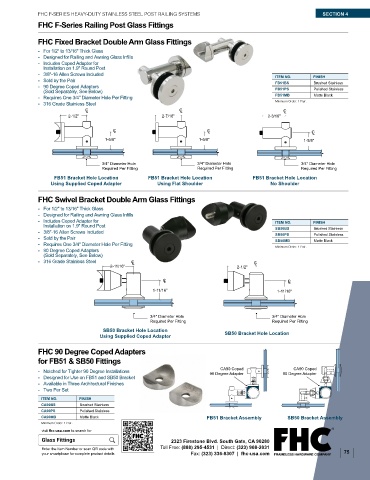

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F-Series Railing Post Glass Fittings

FHC Fixed Bracket Double Arm Glass Fittings
- For 1/2" to 13/16" Thick Glass
- Designed for Railing and Awning Glass Infills
- Includes Coped Adapter for
Installation on 1.9" Round Post
- 3/8"-16 Allen Screws Included ITEM NO. FINISH
- Sold by the Pair FB51BS Brushed Stainless
- 90 Degree Coped Adapters
(Sold Separately, See Below) FB51PS Polished Stainless
- Requires One 3/4" Diameter Hole Per Fitting FB51MB Matte Black
- 316 Grade Stainless Steel Minimum Order: 1 Pair.
C L C L C L
2-1/2" 2-7/16" 2-3/16"

C L C L C L
1-5/8" 1-5/8" 1-5/8"

3/4" Diameter Hole 3/4" Diameter Hole 3/4" Diameter Hole
Required Per Fitting Required Per Fitting Required Per Fitting
FB51 Bracket Hole Location FB51 Bracket Hole Location FB51 Bracket Hole Location
Using Supplied Coped Adapter Using Flat Shoulder No Shoulder

FHC Swivel Bracket Double Arm Glass Fittings
- For 1/2" to 13/16" Thick Glass
- Designed for Railing and Awning Glass Infills
- Includes Coped Adapter for ITEM NO. FINISH
Installation on 1.9" Round Post
- 3/8"-16 Allen Screws Included SB50BS Brushed Stainless
SB50PS
Polished Stainless
- Sold by the Pair SB50MB Matte Black
- Requires One 3/4" Diameter Hole Per Fitting Minimum Order: 1 Pair.
- 90 Degree Coped Adapters
(Sold Separately, See Below)
- 316 Grade Stainless Steel C L C L
2-11/16" 2-1/2"
C L C L
1-11/16" 1-11/16"

3/4" Diameter Hole 3/4" Diameter Hole
Required Per Fitting Required Per Fitting
SB50 Bracket Hole Location
Using Supplied Coped Adapter SB50 Bracket Hole Location
FHC 90 Degree Coped Adapters
for FB51 & SB50 Fittings

CA90 Coped
CA90 Coped
- Notched for Tighter 90 Degree Installations 90 Degree Adapter 90 Degree Adapter
- Designed for Use on FB51 and SB50 Bracket
- Available in Three Architectural Finishes
- Two Per Set
ITEM NO. FINISH
CA90BS Brushed Stainless
CA90PS Polished Stainless
CA90MB Matte Black FB51 Bracket Assembly SB50 Bracket Assembly
Minimum Order: 1 Pair.
