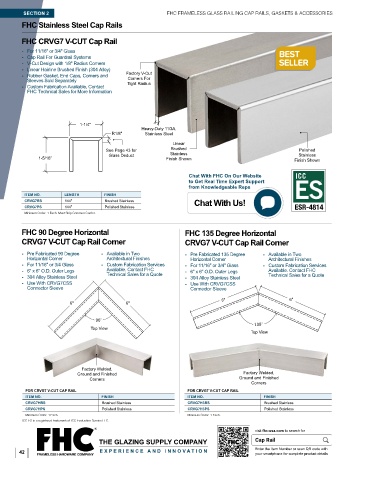

Page 56 - FHC FGR24R Architectural Railing Systems

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails

FHC CRVG7 V-CUT Cap Rail

- For 11/16" or 3/4" Glass
- Cap Rail For Guardrail Systems
- V-Cut Design with 1/8" Radius Corners
- Linear Hairline Brushed Finish (304 Alloy)
- Rubber Gasket, End Caps, Corners and Factory V-Cut
Sleeves Sold Separately Corners For
- Custom Fabrication Available, Contact Tight Radius
FHC Technical Sales for More Information

1-1/4"
Heavy-Duty 11GA.
R1/8" Stainless Steel
Linear
See Page 43 for Brushed Polished
Glass Deduct Stainless Stainless
1-5/16" Finish Shown Finish Shown

Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps
ITEM NO. LENGTH FINISH
CRVG7BS 144" Brushed Stainless Chat With Us!
CRVG7PS 144" Polished Stainless ESR-4814
Minimum Order: 1 Each. Must Ship Common Carrier.

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRVG7 V-CUT Cap Rail Corner CRVG7 V-CUT Cap Rail Corner

- Pre Fabricated 90 Degree - Available in Two - Pre Fabricated 135 Degree - Available in Two
Horizontal Corner Architectural Finishes Horizontal Corner Architectural Finishes
- For 11/16" or 3/4 Glass - Custom Fabrication Services - For 11/16" or 3/4" Glass - Custom Fabrication Services
- 6" x 6" O.D. Outer Legs Available. Contact FHC - 6" x 6" O.D. Outer Legs Available. Contact FHC
- 304 Alloy Stainless Steel Technical Sales for a Quote - 304 Alloy Stainless Steel Technical Sales for a Quote
- Use With CRVG7CSS - Use With CRVG7CSS
Connector Sleeve Connector Sleeve
6" 6"
6" 6"

90˚
135˚
Top View
Top View

Factory Welded,
Ground and Finished Factory Welded,
Corners Ground and Finished
Corners
FOR CRVG7 V-CUT CAP RAIL FOR CRVG7 V-CUT CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRVG7HBS Brushed Stainless CRVG7H3BS Brushed Stainless
CRVG7HPS Polished Stainless CRVG7H3PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Cap Rail
42 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
