FHC FRAMELESS GLASS RAILINGS SECTION 1

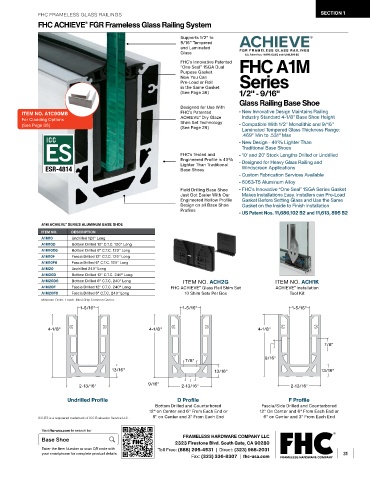

FHC ACHIEVE FGR Frameless Glass Railing System
®
Supports 1/2" to
9/16" Tempered
and Laminated
Glass
FHC’s Innovative Patented FHC A1M
“One Seal” 1SGA Dual
Purpose Gasket.
Now You Can Series
Pre-Load or Roll
in the Same Gasket
(See Page 36) 1/2" - 9/16"
Glass Railing Base Shoe
Designed for Use With
ITEM NO. A1C90MB FHC’s Patented - New Innovative Design Maintains Railing
Industry Standard 4-1/8" Base Shoe Height
®
For Cladding Options ACHIEVE Dry Glaze
(See Page 35) Shim Set Technology - Compatible With 1/2" Monolithic and 9/16"
(See Page 29)
Laminated Tempered Glass Thickness Range:
.469" Min to .531" Max
ICC - New Design - 40% Lighter Than

Traditional Base Shoes
FHC’s Tested and - 10' and 20' Stock Lengths Drilled or Undrilled
Engineered Profile is 40% - Designed for Heavy Glass Railing and

Lighter Than Traditional
ESR-4814 Base Shoes Windscreen Applications
- Custom Fabrication Services Available
- 6063-T5 Aluminum Alloy
Field Drilling Base Shoe - FHC’s Innovative “One Seal” 1SGA Series Gasket
Just Got Easier With Our Makes Installations Easy. Installers can Pre-Load
Engineered Hollow Profile Gasket Before Setting Glass and Use the Same
Design on all Base Shoe Gasket on the Inside to Finish Installation
Profiles
- US Patent Nos. 11,686,102 B2 and 11,613, 895 B2
A1M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A1M10 Undrilled 120" Long
A1M10D Bottom Drilled 12" C.T.C. 120" Long
A1M10D6 Bottom Drilled 6" C.T.C. 120" Long
A1M10F Fascia Drilled 12" C.T.C. 120" Long
A1M10F6 Fascia Drilled 6" C.T.C. 120" Long
A1M20 Undrilled 240" Long
A1M20D Bottom Drilled 12" C.T.C. 240" Long
A1M20D6 Bottom Drilled 6" C.T.C. 240" Long ITEM NO. ACH2G ITEM NO. ACH1K
A1M20F Fascia Drilled 12" C.T.C. 240" Long FHC ACHIEVE Glass Rail Shim Set ACHIEVE Installation
®
®
A1M20F6 Fascia Drilled 6" C.T.C. 240" Long 10 Shim Sets Per Box Tool Kit
Minimum Order: 1 each. Must Ship Common Carrier.
1-5/16" 1-5/16" 1-5/16"

4-1/8" 4-1/8" 4-1/8"

7/8"

9/16"
7/8"
13/16" 13/16" 13/16"

2-13/16" 9/16" 2-13/16" 2-13/16"

Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored Fascia/Side Drilled and Counterbored
12" on Center and 6" From Each End or 12" On Center and 6" From Each End or
ICC-ES is a registered trademark of ICC Evaluation Service LLC. 6" on Center and 3" From Each End 6" on Center and 3" From Each End
