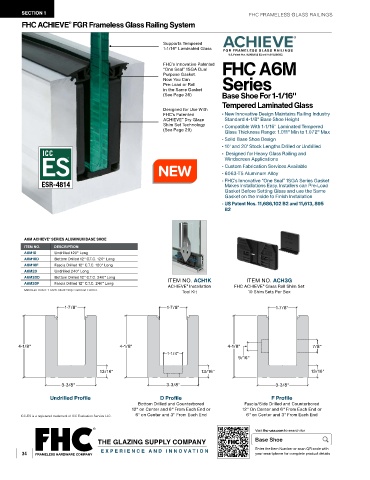

Page 36 - FGR26-Frameless-Glass-Railing

SECTION 1 FHC FRAMELESS GLASS RAILINGS
SECTION 1
FHC ACHIEVE FGR Frameless Glass Railing System
®

Supports Tempered
1-1/16" Laminated Glass

FHC’s Innovative Patented FHC A6M
“One Seal” 1SGA Dual
Purpose Gasket.
Now You Can Series
Pre-Load or Roll
in the Same Gasket
(See Page 36) Base Shoe For 1-1/16"
Tempered Laminated Glass
Designed for Use With
FHC’s Patented - New Innovative Design Maintains Railing
ACHIEVE Dry Glaze Industry Standard 4-1/8" Base Shoe Height
®
Shim Set Technology - Compatible With 1-1/16" Monolithic and 9/16"
(See Page 29) Laminated Tempered Glass Thickness Range:
1.011" Min to 1.072" Max
- Solid Base Shoe Design
ICC - 10' and 20' Stock Lengths Drilled or Undrilled

- Designed for Heavy Glass Railing and
Windscreen Applications
- Custom Fabrication Services Available
- 6063-T5 Aluminum Alloy
ESR-4814 - FHC’s Innovative “One Seal” 1SGA Series Gasket
Makes Installations Easy. Installers can Pre-Load
Gasket Before Setting Glass and use the Same
Gasket on the Inside to Finish Installation
- US Patent Nos. 11,686,102 B2 and 11,613, 895 B2

A6M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A6M10 Undrilled 120" Long
A6M10D Bottom Drilled 12" C.T.C. 120" Long
A6M10F Fascia Drilled 12" C.T.C. 120" Long
A6M20 Undrilled 240" Long
A6M20D Bottom Drilled 12" C.T.C. 240" Long ITEM NO. ACH1K ITEM NO. ACH3G
A6M20F Fascia Drilled 12" C.T.C. 240" Long ACHIEVE Installation FHC ACHIEVE Glass Rail Shim Set
®
®
Minimum Order: 1 each. Must Ship Common Carrier. Tool Kit 10 Shim Sets Per Box
1-7/8" 1-7/8" 1-7/8"

4-1/8" 4-1/8" 4-1/8" 7/8"
1-1/4"
9/16"

13/16" 13/16" 13/16"

3-3/8" 3-3/8" 3-3/8"
Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored Fascia/Side Drilled and Counterbored
12" on Center and 6" From Each End or 12" On Center and 6" From Each End or
ICC-ES is a registered trademark of ICC Evaluation Service LLC. 6" on Center and 3" From Each End 6" on Center and 3" From Each End

Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe

34 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
