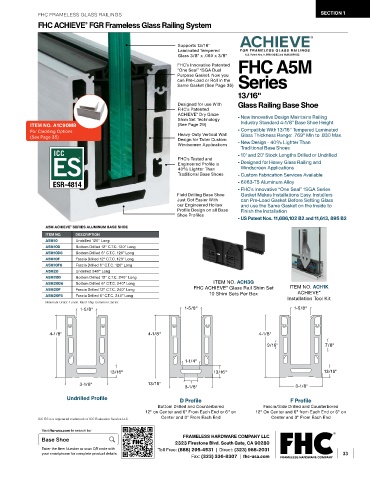

Page 35 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC ACHIEVE FGR Frameless Glass Railing System
®

Supports 13/16"
Laminated Tempered
Glass 3/8" x .060 x 3/8"
FHC’s Innovative Patented FHC A5M
“One Seal” 1SGA Dual
Purpose Gasket. Now you
can Pre-Load or Roll in the Series
Same Gasket (See Page 37)
13/16"
Designed for use With Glass Railing Base Shoe
FHC’s Patented
ACHIEVE Dry Glaze - New Innovative Design Maintains Railing
®
Shim Set Technology Industry Standard 4-1/8” Base Shoe Height
ITEM NO. A1C90MB (See Page 29)

For Cladding Options - Compatible With 13/16" Tempered Laminated
(See Page 35) Heavy-Duty Vertical Wall Glass Thickness Range: .769" Min to .830 Max.
Design for Taller Custom
Windscreen Applications - New Design - 40% Lighter Than
Traditional Base Shoes
ICC - 10' and 20' Stock Lengths Drilled or Undrilled
FHC’s Tested and
Engineered Profile is - Designed for Heavy Glass Railing and
40% Lighter Than Windscreen Applications
Traditional Base Shoes - Custom Fabrication Services Available
- 6063-T5 Aluminum Alloy
ESR-4814
- FHC’s Innovative “One Seal” 1SGA Series
Field Drilling Base Shoe Gasket Makes Installations Easy. Installers
Just Got Easier With can Pre-Load Gasket Before Setting Glass
our Engineered Hollow and use the Same Gasket on the Inside to
Profile Design on all Base Finish the Installation
Shoe Profiles
- US Patent Nos. 11,686,102 B2 and 11,613, 895 B2
A5M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A5M10 Undrilled 120" Long
A5M10D Bottom Drilled 12" C.T.C. 120” Long
A5M10D6 Bottom Drilled 6" C.T.C. 120” Long
A5M10F Fascia Drilled 12" C.T.C. 120” Long
A5M10F6 Fascia Drilled 6" C.T.C. 120” Long
A5M20 Undrilled 240" Long
A5M20D Bottom Drilled 12" C.T.C. 240" Long
A5M20D6 Bottom Drilled 6" C.T.C. 240" Long ITEM NO. ACH3G ITEM NO. ACH1K
®
A5M20F Fascia Drilled 12" C.T.C. 240” Long FHC ACHIEVE Glass Rail Shim Set ACHIEVE
®
A5M20F6 Fascia Drilled 6" C.T.C. 240” Long 10 Shim Sets Per Box Installation Tool Kit
Minimum Order: 1 each. Must Ship Common Carrier.
1-5/8" 1-5/8" 1-5/8"

4-1/8" 4-1/8" 4-1/8"
9/16" 7/8"

1-1/4"
13/16" 13/16" 13/16"

3-1/8" 13/16"
3-1/8" 3-1/8"
Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored Fascia/Side Drilled and Counterbored
12" on Center and 6" From Each End or 6" on 12" On Center and 6" from Each End or 6" on
Center and 3" From Each End Center and 3" From Each End
