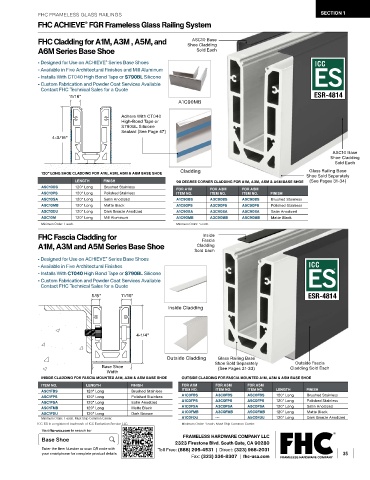

Page 37 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC ACHIEVE FGR Frameless Glass Railing System
®

ASC10 Base
FHC Cladding for A1M, A3M , A5M, and Shoe Cladding
A6M Series Base Shoe Sold Each
- Designed for Use on ACHIEVE Series Base Shoes ICC
®
- Available in Five Architectural Finishes and Mill Aluminum
- Installs With CT040 High Bond Tape or S790BL Silicone
- Custom Fabrication and Powder Coat Services Available
Contact FHC Technical Sales for a Quote
11/16" ESR-4814
A1C90MB

Adhere With CT040
High-Bond Tape or
S790BL Silicone
Sealant (See Page 47)
4-3/16"

ASC10 Base
Shoe Cladding
Sold Each
Cladding Glass Railing Base
120" LONG SHOE CLADDING FOR Shoe Sold Separately
ITEM NO. LENGTH FINISH 90 DEGREE CORNER CLADDING FOR (A1M, A3M, A5M & A6M BASE SHOE) (See Pages 31-34)
ASC10BS 120" Long Brushed Stainless FOR A1M FOR A3M FOR A5M FINISH
ITEM NO.
ITEM NO.
ITEM NO.
ASC10PS 120" Long Polished Stainless A1C90BS A3C90BS A5C90BS Brushed Stainless
ASC10SA 120" Long Satin Anodized A1C90PS A3C90PS A5C90PS Polished Stainless
ASC10MB 120" Long Matte Black A1C90SA A3C90SA A5C90SA Satin Anodized
ASC10DU 120" Long Dark Bronze Anodized A1C90MB A3C90MB A5C90MB Matte Black
ASC10M 120" Long Mill Aluminum
Minimum Order: 1 each.
Minimum Order: 1 each.
FHC Fascia Cladding for Fascia
Inside
A1M, A3M and A5M Series Base Shoe Cladding
Sold Each
- Designed for Use on ACHIEVE Series Base Shoes
®
- Available in Five Architectural Finishes ICC
- Installs With CT040 High Bond Tape or S790BL Silicone
- Custom Fabrication and Powder Coat Services Available
Contact FHC Technical Sales for a Quote
5/8" 11/16" ESR-4814

Inside Cladding

4-1/4"

Outside Cladding Glass Railing Base
Shoe Sold Separately Outside Fascia
Base Shoe (See Pages 31-33) Cladding Sold Each
Width
INSIDE CLADDING FOR FASCIA MOUNTED A1M, A3M & A5M BASE SHOE OUTSIDE CLADDING FOR FASCIA MOUNTED A1M, A3M & A5M BASE SHOE
ITEM NO. LENGTH FINISH FOR A1M FOR A3M FOR A5M
ASC1FBS 120" Long Brushed Stainless ITEM NO. ITEM NO. ITEM NO. LENGTH FINISH
ASC1FPS 120" Long Polished Stainless A1C0FBS A3C0FBS A5C0FBS 120" Long Brushed Stainless
ASC1FSA 120" Long Satin Anodized A1C0FPS A3C0FPS A5C0FPS 120" Long Polished Stainless
ASC1FMB 120" Long Matte Black A1C0FSA A3C0FSA A5C0FSA 120" Long Satin Anodized
ASC1FDU 120" Long Dark Bronze A1C0FMB A3C0FMB A5C0FMB 120" Long Matte Black
Minimum Order: 1 each. Must Ship Common Carrier. A1C0FDU --- A5C0FDU 120" Long Dark Bronze Anodized

ICC-ES is a registered trademark of ICC Evaluation Service LLC. Minimum Order: 1 each. Must Ship Common Carrier.
