FHC FRAMELESS GLASS RAILINGS SECTION 1

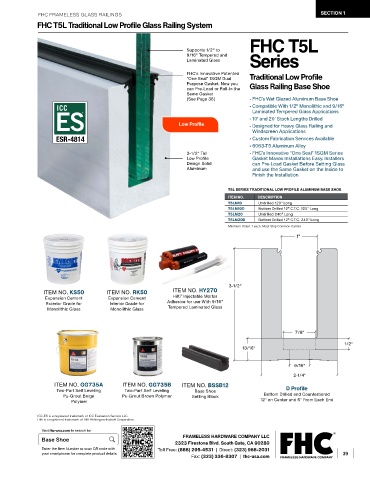

FHC T5L Traditional Low Profile Glass Railing System

FHC T5L

Supports 1/2" to
9/16" Tempered and
Laminated Glass Series
FHC’s Innovative Patented
“One Seal” 1SGM Dual Traditional Low Profile
Purpose Gasket. Now you Glass Railing Base Shoe
can Pre-Load or Roll-In the
Same Gasket
(See Page 36) - FHC’s Wet Glazed Aluminum Base Shoe
ICC - Compatible With 1/2" Monolithic and 9/16"
ICC
Laminated Tempered Glass Applications
- 10' and 20' Stock Lengths Drilled
Low Profile - Designed for Heavy Glass Railing and
Windscreen Applications
ESR-4814 - Custom Fabrication Services Available
ESR-4814
- 6063-T5 Aluminum Alloy
3-1/2" Tall - FHC’s Innovative “One Seal” 1SGM Series
Low Profile Gasket Makes Installations Easy. Installers
Design Solid can Pre-Load Gasket Before Setting Glass
Aluminum and use the Same Gasket on the Inside to
Finish the Installation

T5L SERIES TRADITIONAL LOW PROFILE ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
T5LM10 Undrilled 120" Long
T5LM10D Bottom Drilled 12" C.T.C. 120" Long
T5LM20 Undrilled 240" Long
T5LM20D Bottom Drilled 12" C.T.C. 240" Long
Minimum Order: 1 each. Must Ship Common Carrier.
1"

3-1/2"
ITEM NO. KS50 ITEM NO. RK50 ITEM NO. HY270
®
Expansion Cement Expansion Cement Hilti Injectable Mortar
Exterior Grade for Interior Grade for Adhesive for use With 9/16"
Monolithic Glass Monolithic Glass Tempered Laminated Glass

7/8"
1/2"
13/16"

9/16"
2-1/4"
ITEM NO. GG735A ITEM NO. GG735B ITEM NO. BSSB12
Two-Part Self Leveling Two-Part Self Leveling Base Shoe D Profile
Pu-Grout Beige Pu-Grout Brown Polymer Setting Block Bottom Drilled and Counterbored
Polymer 12" on Center and 6" From Each End

ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
