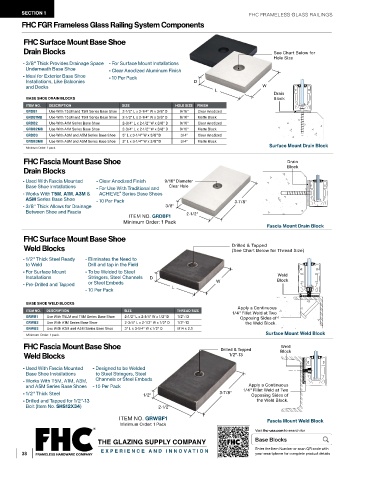

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC FGR Frameless Glass Railing System Components

FHC Surface Mount Base Shoe
Drain Blocks See Chart Below for
Hole Size
- 3/8" Thick Provides Drainage Space For Surface Mount Installations
-
Underneath Base Shoe - Clear Anodized Aluminum Finish
- Ideal for Exterior Base Shoe - 10 Per Pack
Installations, Like Balconies D
and Decks W
L
Drain
BASE SHOE DRAIN BLOCKS Block
ITEM NO. DESCRIPTION SIZE HOLE SIZE FINISH
GRDB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 3/8" D 9/16" Clear Anodized
GRDB1MB Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 3/8" D 9/16" Matte Black
GRDB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 3/8" D 9/16" Clear Anodized
GRDB2MB Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 3/8" D 9/16" Matte Black
GRDB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 3/8" D 3/4" Clear Anodized
GRDB3MB Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 3/8" D 3/4" Matte Black
Minimum Order: 1 pack. Surface Mount Drain Block
FHC Fascia Mount Base Shoe Drain
Drain Blocks Block

- Used With Fascia Mounted - Clear Anodized Finish 9/16" Diameter
Base Shoe Installations - For Use With Traditional and Clear Hole
- Works With T5M, A1M, A3M & ACHIEVE Series Base Shoes
®
A5M Series Base Shoe - 10 Per Pack 3-7/8"
- 3/8" Thick Allows for Drainage 3/8"
Between Shoe and Fascia
ITEM NO. GRDBF1 2-1/2"
Minimum Order: 1 Pack
Fascia Mount Drain Block
FHC Surface Mount Base Shoe
Weld Blocks Drilled & Tapped
(See Chart Below for Thread Size)
- 1/2" Thick Steel Ready - Eliminates the Need to
to Weld Drill and tap in the Field
- For Surface Mount - To be Welded to Steel
Installations Stringers, Steel Channels D Weld
- Pre-Drilled and Tapped or Steel Embeds W Block
- 10 Per Pack L

BASE SHOE WELD BLOCKS
Apply a Continuous
ITEM NO. DESCRIPTION SIZE THREAD SIZE 1/4" Fillet Weld at Two
GRWB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 1/2" D 1/2"-13 Opposing Sides of
GRWB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 1/2" D 1/2"-13 the Weld Block.
GRWB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 1/2" D M14 x 2.0
Minimum Order: 1 pack. Surface Mount Weld Block
FHC Fascia Mount Base Shoe Drilled & Tapped Weld
Weld Blocks 1/2"-13 Block

- Used With Fascia Mounted - Designed to be Welded
Base Shoe Installations to Steel Stringers, Steel
- Works With T5M, A1M, A3M, Channels or Steel Embeds
and A5M Series Base Shoes - 10 Per Pack Apply a Continuous
- 1/2" Thick Steel 1/2" 3-7/8" 1/4" Fillet Weld at Two
Opposing Sides of
- Drilled and Tapped for 1/2"-13 the Weld Block.
Bolt (Item No. SHS12X34) 2-1/2"

ITEM NO. GRWBF1 Fascia Mount Weld Block
Minimum Order: 1 Pack
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Blocks

38 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
