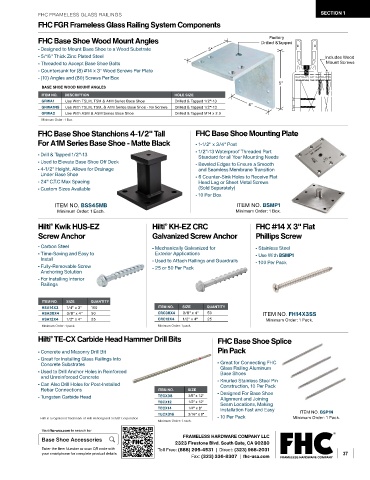

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC FGR Frameless Glass Railing System Components

Factory
FHC Base Shoe Wood Mount Angles Drilled &Tapped
- Designed to Mount Base Shoe to a Wood Substrate 5"
- 5/16" Thick Zinc Plated Steel Includes Wood
- Threaded to Accept Base Shoe Bolts Mount Screws
- Countersunk for (8) #14 x 3" Wood Screws Per Plate
- (10) Angles and (80) Screws Per Box
5"
BASE SHOE WOOD MOUNT ANGLES
ITEM NO. DESCRIPTION HOLE SIZE
GRWA1 Use With T5LM, T5M & A1M Series Base Shoe Drilled & Tapped 1/2"-13 4"
GRWA1NS Use With T5LM, T5M, & A1M Series Base Shoe - No Screws Drilled & Tapped 1/2"-13
GRWA2 Use With A3M & A5M Series Base Shoe Drilled & Tapped M14 x 2.0
Minimum Order: 1 Box.
FHC Base Shoe Stanchions 4-1/2" Tall FHC Base Shoe Mounting Plate
For A1M Series Base Shoe - Matte Black - 1-1/2" x 3/4" Post
- 1/2"-13 Waterproof Threaded Port
- Drill & Tapped 1/2"-13 Standard for all Your Mounting Needs
- Used to Elevate Base Shoe Off Deck - Beveled Edges to Ensure a Smooth
- 4-1/2" Height, Allows for Drainage and Seamless Membrane Transition
Under Base Shoe - 6 Counter-Sink Holes to Receive Flat
- 24" C.T.C Max Spacing Head Lag or Sheet Metal Screws
- Custom Sizes Available (Sold Separately)
- 10 Per Box
ITEM NO. BSS45MB ITEM NO. BSMP1
Minimum Order: 1 Each. Minimum Order: 1 Box.

Hilti Kwik HUS-EZ Hilti KH-EZ CRC FHC #14 X 3" Flat
®
®
Screw Anchor Galvanized Screw Anchor Phillips Screw
- Carbon Steel - Mechanically Galvanized for - Stainless Steel
- Time-Saving and Easy to Exterior Applications - Use With BSMP1
Install - Used to Attach Railings and Guardrails
- Fully-Removable Screw - 25 or 50 Per Pack - 100 Per Pack
Anchoring Solution
- For Installing Interior
Railings

ITEM NO. SIZE QUANTITY
HSA14X3 1/4" x 3" 100 ITEM NO. SIZE QUANTITY
HSA38X4 3/8" x 4" 50 CRC38X4 3/8" x 4" 50 ITEM NO. FH14X3SS
HSA12X4 1/2" x 4" 25 CRC12X4 1/2" x 4" 25 Minimum Order: 1 Pack.
Minimum Order: 1 pack. Minimum Order: 1 pack.
Hilti TE-CX Carbide Head Hammer Drill Bits FHC Base Shoe Splice
®
- Concrete and Masonry Drill Bit Pin Pack
- Great for Installing Glass Railings Into
Concrete Substrates - Great for Connecting FHC
- Used to Drill Anchor Holes in Reinforced Glass Railing Aluminum
Base Shoes
and Unreinforced Concrete
- Can Also Drill Holes for Post-Installed - Knurled Stainless Steel Pin
Construction, 10 Per Pack
Rebar Connections ITEM NO. SIZE
- Tungsten Carbide Head TECX38 3/8" x 12" - Designed For Base Shoe
Alignment and Joining
TECX12 1/2" x 12" Seam Locations, Making
TECX14 1/4" x 8" Installation Fast and Easy
TECX316 3/16" x 8" ITEM NO. BSP1N
Hilti is a registered trademark of Hilti Aktiengesell Schaft Corporation - 10 Per Pack Minimum Order: 1 Pack.
Minimum Order: 1 each.
Visit fhc-usa.com to search for
Base Shoe Accessories FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 37
Fax: (323) 336-8307 | fhc-usa.com
