Item No
GLENS20RBM

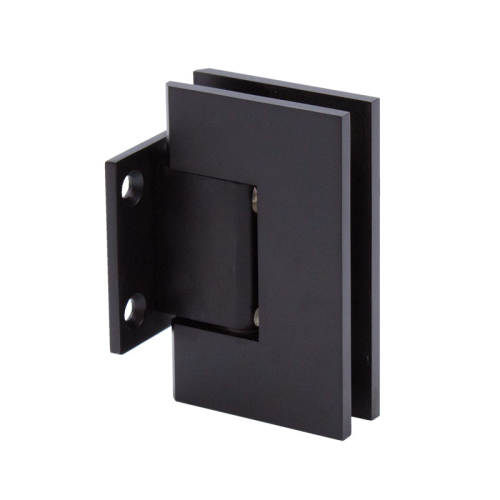

FHC Glendale Series Wall Mount Hinge - Short Back Plate - Oil Rubbed Bronze
Unit Of Measure EA
Features, Advantages, and Benefits
- Square Profile Glass to Wall Hinge with Short Back Plate
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Many Popular Finishes to Select From
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Glendale Series Wall Mount Hinge - Short Back Plate - Oil Rubbed Bronze |
|---|---|
| Item No | GLENS20RBM |
| Select Your Color/Finish | Oil Rubbed Bronze |
| Compare To | C5000100RB |
| Minimum Order Quantity | 1 |
