Item No
GLENS5BNM

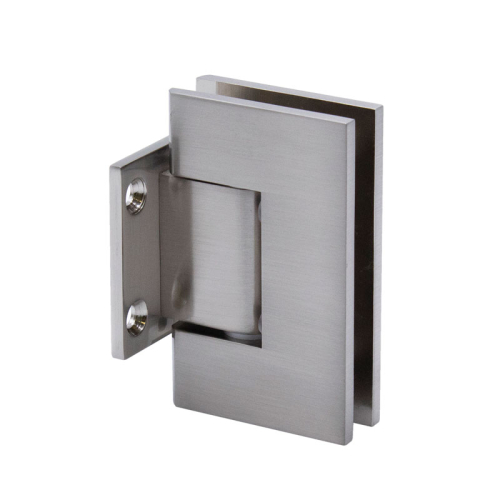

FHC Glendale Square 5 Degree Positive Close Wall Mount Hinge Short Back Plate - Brushed Nickel
Unit Of Measure EA
Features, Advantages, and Benefits
- For 1/2" Glass
- Solid Brass Construction
- Preset 5 Degree Pivot Pin
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Glendale Square 5 Degree Positive Close Wall Mount Hinge Short Back Plate - Brushed Nickel |
|---|---|
| Item No | GLENS5BNM |
| Weight | 1.000000 |
| Select Your Color/Finish | Brushed Nickel |
| Compare To | GEN574BN HGTW5BN C500010BRN5DEG |
| Minimum Order Quantity | 1 |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
