Item No
CLN06BBRZ

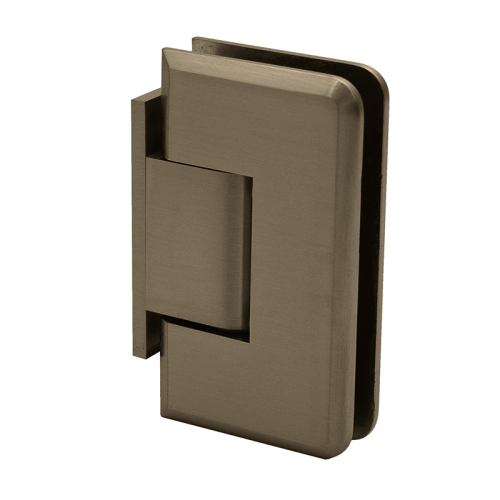

FHC Carolina Beveled Wall Mount Offset Short Back Plate Hinge - Brushed Bronze

Unit Of Measure EA
For Heavier and Wider Doors

Minimum Order Quantity: 1

Existing Customers Can Sign in to See Pricing and Place Orders
New to FHC? Request an Account
For Non-Related Industries Dealer Referral

Features, Advantages, and Benefits

  • Offset Short Back Plate Allows for More Field Adjustment
  • Slip Fit Design Allows for Fast Hinge Installation
  • Allows for "Tighter" Glass Gap at Hinge Side if Required
  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Heavy Duty Design For Wider and Heavier Doors
  • Self-Centering within 15 Degrees of Closing Position
  • Commonly used in Residential Bath and Commercial Hotel Applications
  • Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
  • Many Popular Finishes to Select From
  • Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction
  • Replacement Screws PS102 and PS103 are Available as Needed
  • Can be used with Hinge Limit Plates HLP25 and HLP40
Request a Quote
More Information
Product NameFHC Carolina Beveled Wall Mount Offset Short Back Plate Hinge - Brushed Bronze
Item NoCLN06BBRZ
Weight2.000000
Select Your Color/FinishBrushed Bronze
Glass Thickness3/8" to 1/2"
Compare ToHMBGTW0PVB
Catalog PageFSH24 p. 27
ConstructionSolid Brass with Stainless Steel Plate
Ships AirShips Air
Glass FabricationSee Template PDF for Glass Cutouts
Glass SpecificationsTempered Glass Only
Maximum Door Weight2 Hinges/110 lb, 3 Hinges/140 lb
Maximum Door Width36"
Minimum Order Quantity1
Mounting TypeWall Mount
Plate TypeOffset Short Back Plate
Product Height3-15/16"
Product Width2-5/16"
ProfileBeveled
Ship ViaShips UPS
WarningsNot for use with Laminated Glass
Warranty15 - Year Warranty
