Item No
PRESA40RB

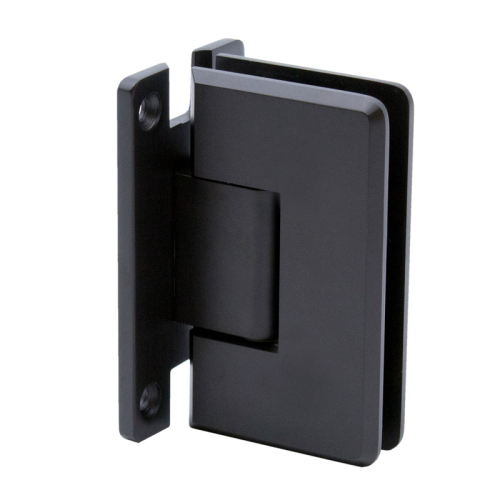

FHC Preston Adjustable Wall Mount Hinge Adjustable - Full Back Plate - Oil Rubbed Bronze
Unit Of Measure EA
Case Quantity 20
Features, Advantages, and Benefits
- NEXT-GEN Includes Factory-Bonded Recessed Gasket (Patent Pending)
- Adjustable Up to 90 Degrees
- Can be Adjusted After Door is Installed
- Solid Brass Construction
- Use with Tempered Glass
- Replacement Screws Item No.PS102 and Item No.PS103 are Available as Needed
- Can be used with Hinge Limit Plates, Item No.HLP25 and Item No.HLP40
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
| Product Name | FHC Preston Adjustable Wall Mount Hinge Adjustable - Full Back Plate - Oil Rubbed Bronze |
|---|---|
| Item No | PRESA40RB |
| Weight | 4.410000 |
| Select Your Color/Finish | Oil Rubbed Bronze |
| Glass Thickness | 3/8" or 1/2" (10 or 12 mm) |
| Case Quantity | 20 |
| Compare To | P1N3370RB HPGTWAFP0B |
| Catalog Page | FSH24 p. 20 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/80 lb, 3 Hinges/120 lb |
| Maximum Door Width | 28" (2 Hinges), 32" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Offset Full Back Plate |
| Product Height | 3-1/2" |
| Product Width | 2-1/8" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
