Item No
CLNA4

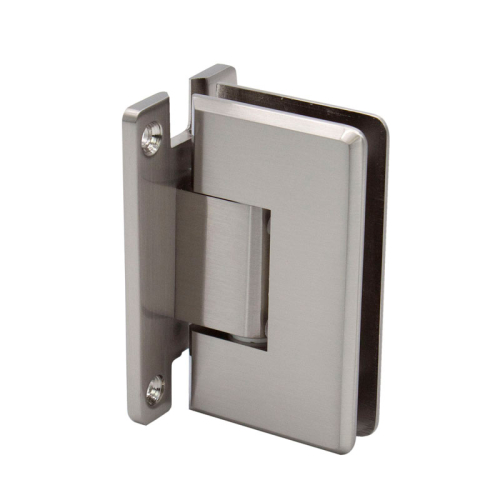

FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate
Unit Of MeasureEA
Only %1 left
Features, Advantages, and Benefits
- Adjustable Up to 90 Degrees
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Can be Adjusted After Door is Installed
- Solid Brass Construction
- Use with Tempered Glass
Description
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
| Product Name | FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate |
|---|---|
| Item No | CLNA4 |
| Glass Thickness | 3/8" to 1/2" |
| Compare To | C0L337BN |
| Catalog Page | FSH24 p. 29 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36" (914 mm) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Full Back Plate |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 3- Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
