Item No
JRPRES05

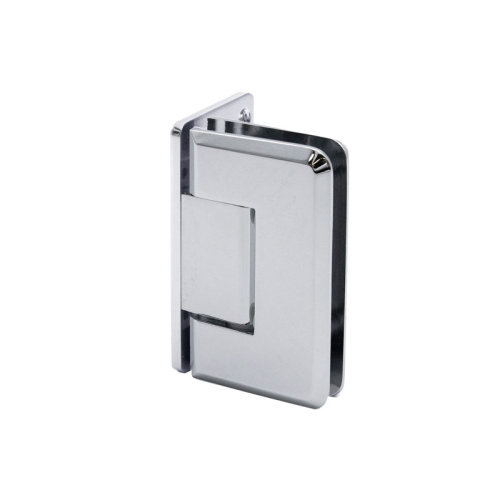

FHC Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4" Glass 5 Degree Positive
Unit Of Measure EA
Only %1 left
Features, Advantages, and Benefits
- For 1/4"-5/16" (6 to 8 mm) Tempered Glass
- Preset 5 Degree Pivot Pin
- Offset Back Plate Design
- Beveled, Radius Corner Design
- Solid Brass Material, with High Quality Plating
Description
| Product Name | FHC Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4" Glass 5 Degree Positive |
|---|---|
| Item No | JRPRES05 |
| Glass Thickness | 1/4" (6 mm) |
| Catalog Page | FSH24 p. 21 |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/55 lb, 3 Hinges/85 lb |
| Maximum Door Width | 32" (2 Hinges), 36" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Offset Full Back Plate |
| Product Height | 3" |
| Product Width | 1-13/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 3- Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
