Item No
PAS03

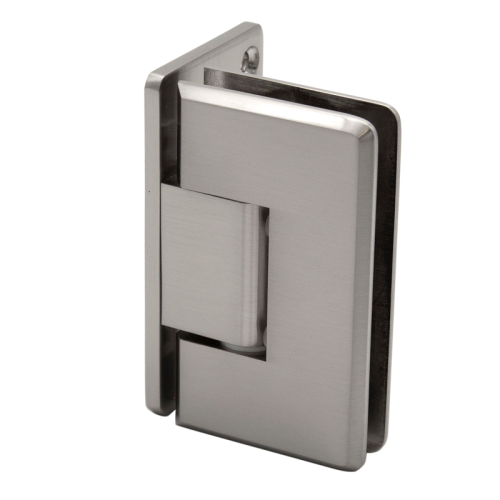

FHC Pasadena Beveled Wall Mount Hinge Offset Back Plate
Unit Of MeasureEA
Only %1 left
Features, Advantages, and Benefits
- For Heavier and Wider Doors, Max 145 Lbs. Rating
- HD Square Profile Glass to Wall Hinge with Offset Back Plate
- Designed for 3/8" - 1/2" (10 Mm to 12 Mm) Tempered Glass
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin for Jobs Requiring a Positive Closing Position
- Many Popular Finishes to Select From
Description
| Product Name | FHC Pasadena Beveled Wall Mount Hinge Offset Back Plate |
|---|---|
| Item No | PAS03 |
| Glass Thickness | 3/8" or 1/2" (10 or 12 mm) |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/145 lb |
| Maximum Door Width | 40" (2 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Offset Full Back Plate |
| Product Height | 4-3/8" |
| Product Width | 2-5/8" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 3- Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
