Item No
PASF1

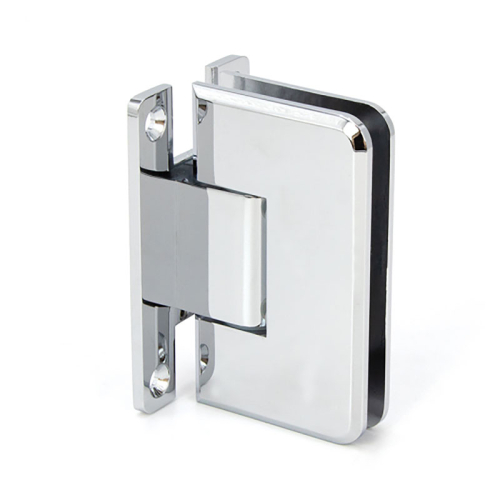

FHC Pasadena HD Wall Mount Hinge - H Back Plate
Unit Of Measure EA
Only %1 left
Features, Advantages, and Benefits
- For Heavier and Wider Doors, Max 145 lbs. rating
- Beveled Profile Heavy-Duty Glass to Wall Shower Hinge with Full Back Plate
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Many Popular Finishes to Select From
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
Description
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 145 LBS (50 kg) | 40" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Pasadena HD Wall Mount Hinge - H Back Plate |
|---|---|
| Item No | PASF1 |
| Glass Thickness | 3/8" or 1/2" (10 or 12 mm) |
| Compare To | PLY037BN |
| Catalog Page | FSH24 p. 33 |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/145 lb |
| Maximum Door Width | 40" (2 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Full Back Plate |
| Product Height | 4-3/8" |
| Product Width | 2-5/8" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 3- Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
