Item No
VENA05

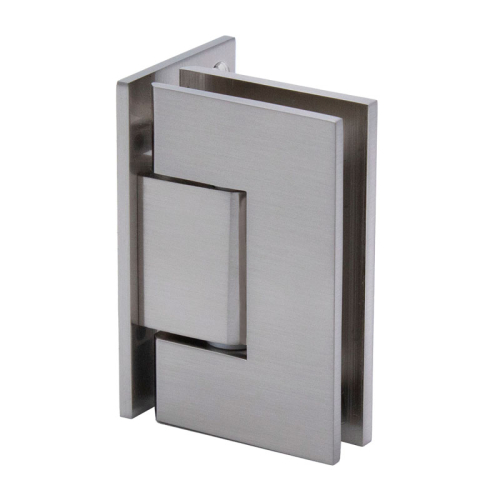

FHC Venice Adjustable Square Wall Mount Hinge Full Offset Back Plate
Unit Of Measure EA
Only %1 left
Features, Advantages, and Benefits
- For 3/8 - 1/2" (10 to 12 mm) Tempered Glass
- Adjustable up to 90°, while the Door is Installed
- Offset Back Plate Design Square Design adds Contemporary Look
- Solid Brass Material, with High Quality Plating
Description
| Product Name | FHC Venice Adjustable Square Wall Mount Hinge Full Offset Back Plate |
|---|---|
| Item No | VENA05 |
| Glass Thickness | 3/8" to 1/2" (10 to 12 mm) |
| Catalog Page | FSH24 p. 25 |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36" (2 or 3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Offset Full Back Plate |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Square |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
