Item No
H3710

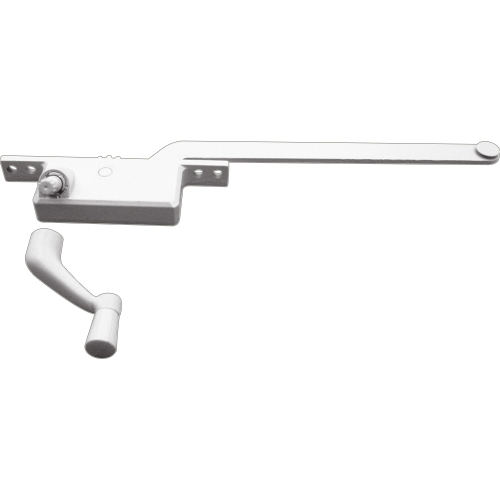

FHC Casement Operator 9" Square Type - Left Hand - White
Unit Of MeasurePK
Case Quantity6
Features, Advantages, and Benefits
- Left Handed Square Body Crank Handle (Viewed From Inside Looking Out)
- Mounting Holes are 3-7/8" and 4-3/4" on Center
- Arm is 9" From Middle of The Guide Button to The Middle of The Crank Operator While Closed
- Heavy Duty Diecast Zinc Construction with a White Finish
- Steel Worm Drive Gear for Durability
- Matching Crank Handle is Included
- A Phillips Head Screwdriver is Required for Installation
Overview
This casement window operator is a left-handed bronze square body type. It has a 9 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Item No. H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. apart.
| Product Name | FHC Casement Operator 9" Square Type - Left Hand - White |
|---|---|
| Item No | H3710 |
| Case Quantity | 6 |
| Compare To | H3710 |
| Minimum Order Quantity | 1 |
