Item No
E2187

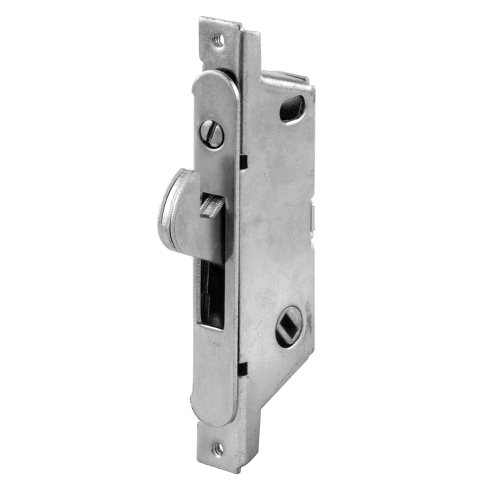

FHC Sliding Door Mortise Lock 45 Degree Round Face - Stainless Steel
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- All Components of These Mortise Locks are Constructed of Steel and Cast Aluminum Materials
- These Locks Come in a Corrosion Resistant, Zinc Plated Finish
- Designed for Use with Patio Sliding Doors, and Can Be Used on Units Constructed of Vinyl and Wood
- Features An Adjustable Faceplate to Allow for Latch Projection Adjustment
- Easy to Install with Only a Few Simple Tools
- For Further Dimensional and Specification Information, Please See The Line Drawing
- A Phillips Head Screwdriver is Required for Installation
Overview
This patio sliding door mortise lock is constructed with a corrosion-resistant, stainless steel housing and stainless steel faceplate. It features a round-end face plate that serves as an adjustment feature for the hook's distance of projection. The keyway rests at a 45 degree position when the hook is fully extended in the locked position. The mounting holes are spaced apart at 3-11/16 in. on center. Fits on W and F manufactured handles. This lock has a housing with clipped corners.
| Product Name | FHC Sliding Door Mortise Lock 45 Degree Round Face - Stainless Steel |
|---|---|
| Item No | E2187 |
| Case Quantity | 6 |
| Compare To | E2187 |
| Minimum Order Quantity | 1 |
