Item No
D1685
FHC Sliding Door Roller Assembly 1-1/2" Steel Ball Bearing
Unit Of MeasurePK
Case Quantity6
Features, Advantages, and Benefits
- Used On Ador And Hilite Sliding Patio Doors
- Allows Sliding Patio Door To Operate Smoothly
- 1-1/2 In. Diameter Concave Roller
- Stamped Steel Housing And Steel Ball Bearing Roller
- Rear Adjusting Screw
- Easy To Install
- A Phillips Head Screwdriver Is Required For Installation
- For Further Dimensional Information, Please See The Line Drawing
Overview

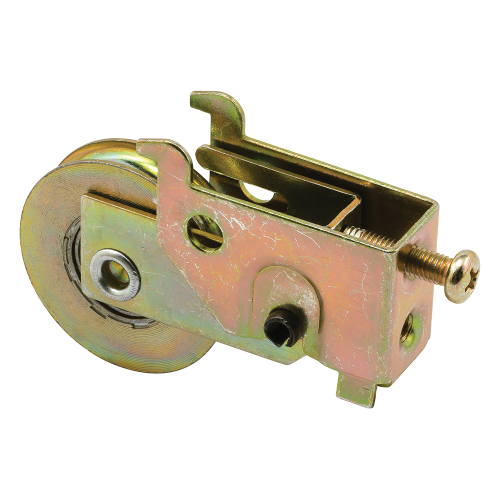

This is two piece roller assembly used on Ador Hilite patio doors. The outer housing is 5/8 in. wide, 31/32 in. tall with a 11/32 in. flare width and has two hook tabs on top. The inner housing holds a 1-1/2 in. steel ball bearing roller. Together, they create an adjustable roller assembly that hooks into the bottom door rail and then is held in place by a 1/4-20 machine screw placed into the back end.
| Product Name | FHC Sliding Door Roller Assembly 1-1/2" Steel Ball Bearing |
|---|---|
| Item No | D1685 |
| Case Quantity | 6 |
| Compare To | D1685 |
| Minimum Order Quantity | 1 |
