Item No
D1733
1-1/4" Steel Ball Bearing Sliding Door Nylon Roller Assembly - North
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used By Northrup and a Variety of Sliding Patio Door Manufacturers
- When the Corner Screw Passes Through the F-Tab the Assembly is Captured By the Side Stile and Bottom Rail as the Screw Draws the Two Sides Together
- 1-1/4 in. Diameter Concave Ball Bearing Roller
- Stamped Steel Housing and Nylon Roller
- Used on Metal Framed Sliding Patio Doors
- Easy to Install
- A Phillips Head Screwdriver is Required for Installation
Overview

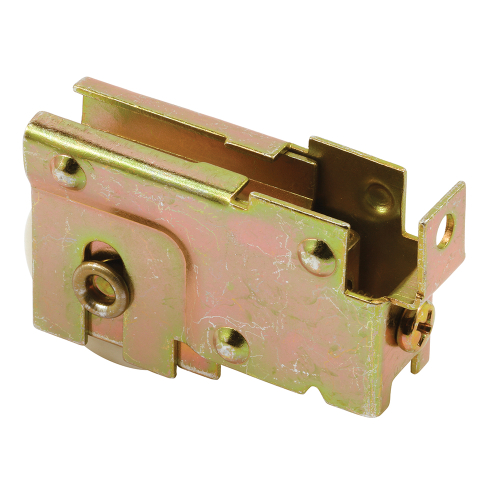

This is a F-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in. . Used by Northrup and a variety of other sliding patio door manufacturers.
| Product Name | 1-1/4" Steel Ball Bearing Sliding Door Nylon Roller Assembly - North |
|---|---|
| Item No | D1733 |
| Case Quantity | 6 |
| Compare To | D1733 |
| Minimum Order Quantity | 1 |
