Item No
D1737
FHC Sliding Door Roller Assembly 1-1/2" Nylon Ball Bearing
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used By A Variety Of Metal Framed Sliding Patio Door Manufacturers
- As The Corner Screw Passes Through The S-Tab It Is Then Captured By The Side Stile And Bottom Rail As The Screw Draws The Two Sides Together
- 1-1/2 In. Concave Ball Bearing Roller
- Stamped Steel Housing And Nylon Roller
- Easy To Install
- Rear Adjusting Screw
- A Phillips Head Screwdriver Is Required For Installation
- For Further Dimensional Information, Please See The Line Drawing
Overview

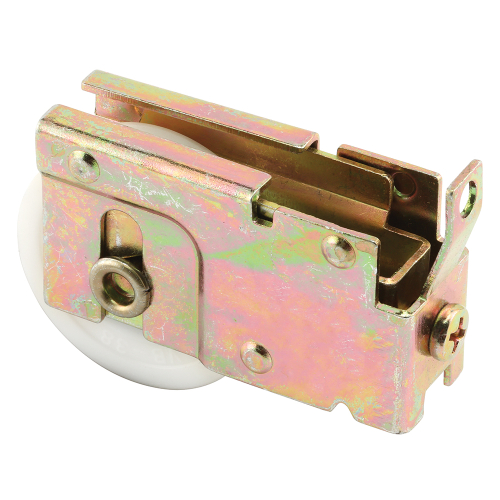

This is an S-tab patio door roller assembly with a 1-1/2 in. concave nylon ball bearing roller. As the corner screw passes through the S-tab it is then captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a 3/4 in. dimple width. Used by a variety of patio door manufacturers.
| Product Name | FHC Sliding Door Roller Assembly 1-1/2" Nylon Ball Bearing |
|---|---|
| Item No | D1737 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1737 |
| Minimum Order Quantity | 1 |
