Item No
D1906

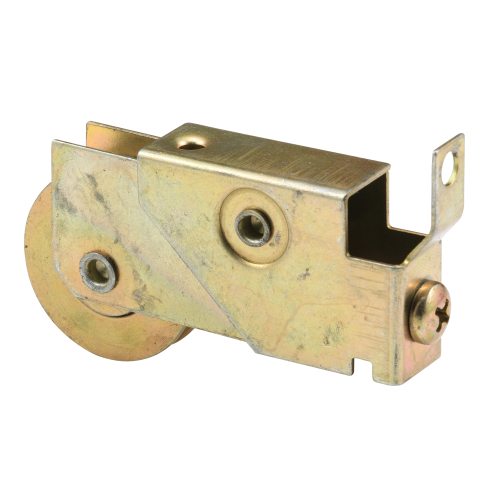

Single 1-1/4" Steel Ball Bearing Roller - S-Tab Style - Adjustable
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- 1-1/4 in. Concave (Grooved) Steel Roller
- Ball Bearing
- S-Tab Housing With Rear Adjust
- The S Tab Has a Non-Threaded Mounting Hole in It, There is Also An Optional Use 10-32 Threaded Hole on the Top of the Housing
- Housing is 17/32 in. Wide, 1-5/32 in. Tall and 1-1/4 in. Long (Not Including the Inner Roller Housing)
- Used on Metal or Vinyl Framed Patio Doors
- Used By a Variety of Patio Door Manufacturers
Overview
This is an S-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the S-tab it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 17/32 in. wide and 1-5/32 in. tall. It is a common shape that a variety of patio door designers have incorporated into their patio door.
| Product Name | Single 1-1/4" Steel Ball Bearing Roller - S-Tab Style - Adjustable |
|---|---|
| Item No | D1906 |
| Case Quantity | 6 |
| Compare To | D1906 |
| Minimum Order Quantity | 1 |
