Item No
D1918

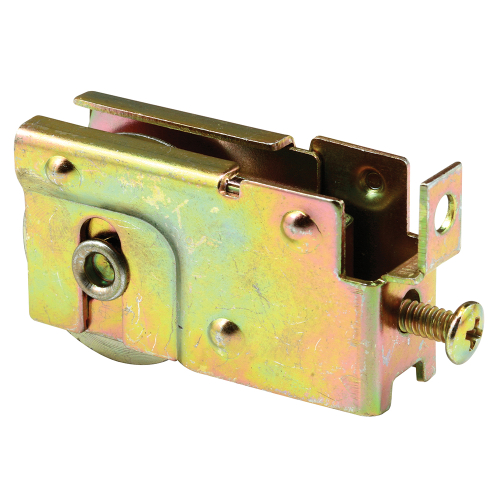

FHC Sliding Door Roller Assembly 1-1/4" Steel Ball Bearing
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used By Lupton And A Variety Of Other Sliding Patio Door Manufacturers
- F-Tab Housing
- 1-1/4 In. Diameter Concave Steel Roller
- Stamped Steel Housing With Ball Bearing Roller
- Mounting Tabs On Each End
- Used On Metal Framed Sliding Patio Doors
- A Phillips Head Screwdriver Is Required For Installation
- For Further Dimensional Information, Please See The Line Drawing
Overview
This is a F-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a 7/8 in. dimple width. Used by Lupton and a variety of other patio door manufacturers.
| Product Name | FHC Sliding Door Roller Assembly 1-1/4" Steel Ball Bearing |
|---|---|
| Item No | D1918 |
| Case Quantity | 6 |
| Compare To | D1918 |
| Minimum Order Quantity | 1 |
