Item No
D1923
FHC Sliding Door Roller Assembly 1-1/4" Steel Ball Bearing
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used By A Variety Of Sliding Patio Door Manufacturers
- The T-Shaped Tab (K-Tab) Is Simply Slid Up Into A T-Shaped Receptacle In The Bottom Of The Patio Door
- 1-1/4 In. Diameter Concave Ball Bearing Roller
- Stamped Steel Housing And Nylon Roller
- Used On Metal Framed Sliding Patio Doors
- Easy To Install
- A Phillips Head Screwdriver Is Required For Installation
- For Further Dimensional Information, Please See The Line Drawing
Overview

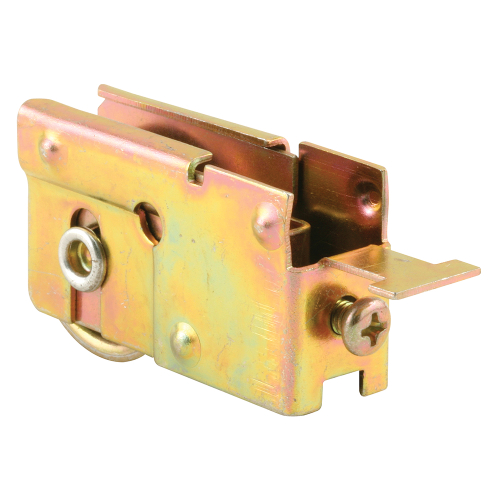

This is a K-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required. The housing is 3/4 in. wide and 1-1/4 in. tall with a dimple 7/8 in. wide. The dimples insure a tight fit within the patio door's bottom rail. Used by a variety of door manufacturers.
| Product Name | FHC Sliding Door Roller Assembly 1-1/4" Steel Ball Bearing |
|---|---|
| Item No | D1923 |
| Case Quantity | 6 |
| Compare To | D1923 |
| Minimum Order Quantity | 1 |
