Features, Advantages, & Benefits
Item NoFHC 1-1/4" Steel Ball Bearing - F-Tab Style Rollers (Single Pack)
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoFHC 1-1/4" Steel Ball Bearing - F-Tab Style Rollers (Single Pack)
Features, Advantages, & Benefits
Used by Sun Valley, Fullview, Glasco and a variety of other metal sliding patio door manufacturers
When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
Rear adjustment screw
Stamped steel housing with a ball bearing rollers
1-1/4 in. concave steel roller
Replaces old style F style assemblies that slid into an extruded channel in the bottom rail
Features, Advantages, & Benefits
Overview

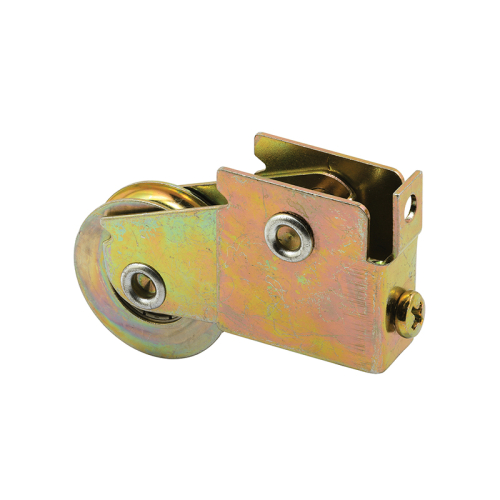

This is an F-tab patio door roller assembly with a 1-1/4 in. concave ball bearing roller that replaces the Old Style design. Used on Sun Valley, Fullview, Glasco and a variety of other sliding patio door manufacturers. When the corner screw passes through the "F" tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide and 1-9/32 in. tall, with a rear adjusting screw.
| Product Name | FHC 1-1/4" Steel Ball Bearing - F-Tab Style Rollers (Single Pack) |
|---|---|
| Item No | D1509 |
| Weight | 0.250000 |
| Case Quantity | 6 |
| Compare To | D1509 |
| Minimum Order Quantity | 1 |
