Features, Advantages, & Benefits
Item NoFHC Single 1-1/2" Steel Ball Bearing Roller - F-Tab Style - Adjustable
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoFHC Single 1-1/2" Steel Ball Bearing Roller - F-Tab Style - Adjustable
Features, Advantages, & Benefits
1-1/2 in. concave (grooved) steel roller
Ball bearing
F-tab housing with rear adjust
When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
Housing is 3/4 in. wide, 1-1/2 in. tall and 1-1/2 in. long (not including the inner roller housing)
Rear adjustment screw
Features, Advantages, & Benefits
Overview

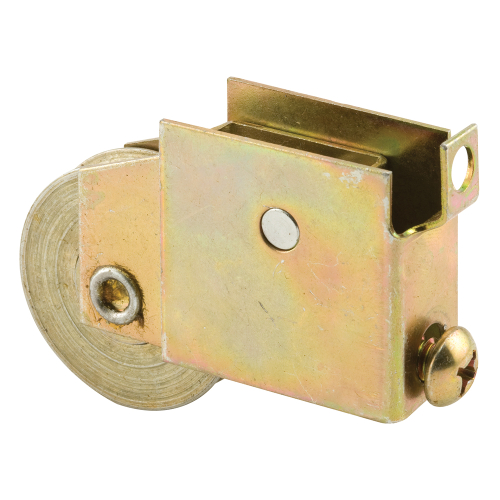

This is a F-tab patio door roller assembly with a 1-1/2 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 3/4 in. wide and 1-1/2 in. tall with a rear adjusting screw. Used by Holleyview, Fullview and a variety of other patio door manufacturers.
| Product Name | FHC Single 1-1/2" Steel Ball Bearing Roller - F-Tab Style - Adjustable |
|---|---|
| Item No | D1531 |
| Weight | 0.250000 |
| Case Quantity | 6 |
| Compare To | D1531 |
| Minimum Order Quantity | 1 |
