Item No
D1539

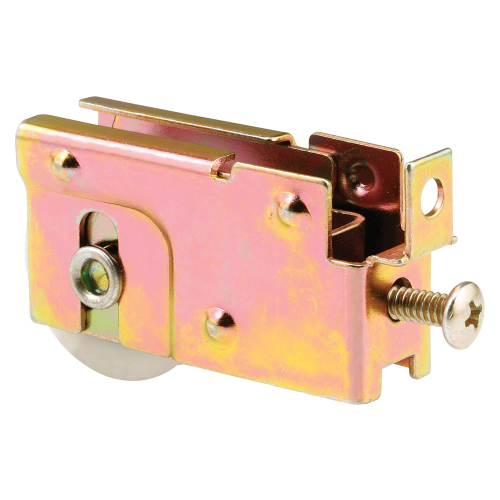

FHC 1-1/4" Nylon Ball Bearing Sliding Door Roller Assembly - For Lupton (Single Pack)
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used by Lupton and a variety of sliding patio door manufacturers
- When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/4 in. concave roller
- Steel housing and ball bearing roller
- F-tab rear adjusting screw
Overview
This is a F-tab patio door roller assembly with a 1-1/4 in. concave nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a 7/8 in. dimple width. Used by Lupton and a variety of sliding patio door manufacturers.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
