Features, Advantages, & Benefits
Item NoD1560

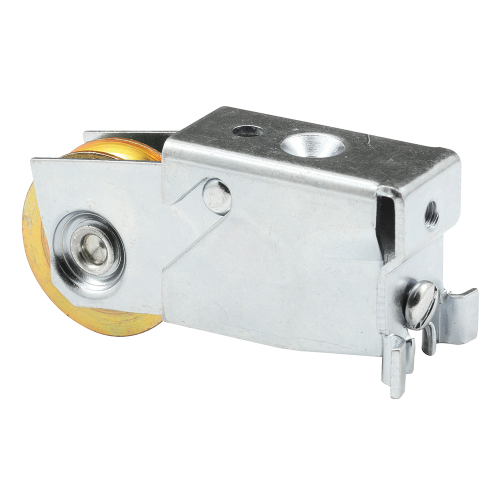

D1560 Single 1-1/4" Steel Roller Assembly - Ball Bearing - Unique Housing
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1560
FHC Single 1-1/4" Steel Roller Assembly - Ball Bearing - Unique Housing
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
- 1-1/4 in. concave (grooved) steel rollers
- Ball bearing
- Unique housing installation tab design with rear adjust
- 1/4-20 Threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing
- Housing is 1-3/16 in. wide, 1-5/16 in. tall and 1-11/16 in. long (not including the inner roller housing)
Features, Advantages, & Benefits
Overview
This is a unique back patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. It's has a tab design on the bottom back edge that snaps the roller assembly into place on the door stile edge before being held in place by a mounting screw in the 1/4-20 threaded mounting hole in the back end of the housing. It is 1-3/16 in. wide and 1-5/16 in. tall with an optional use #10-32 threaded hole in the top of the housing. Used by Smith and Kelly and a variety of other manufacturers.
| Product Name | FHC Single 1-1/4" Steel Roller Assembly - Ball Bearing - Unique Housing |
|---|---|
| Item No | D1560 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1560 |
| Minimum Order Quantity | 1 |
