Features, Advantages, & Benefits
Item NoD1591

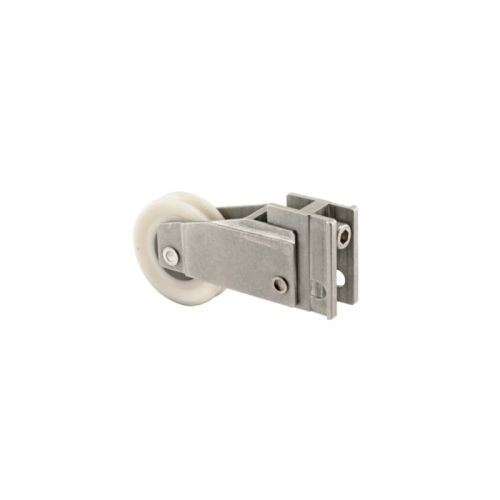

D1591 Sliding Door Roller Assembly 1-11/16" Nylon Ball Bearing
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1591
FHC Sliding Door Roller Assembly 1-11/16" Nylon Ball Bearing
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
1-11/16 In. Nylon Roller
Ball Bearing
Unique Style Housing With Rear Adjust
Extruded Aluminum
Fits Neatly Into The Joint Of The Bottom Door Rail And The Side Stile With Drive Pin Driven In Through Frame'S Side To Hold It In Place
The Housing Is 11/16 In. Wide And 1-1/2 In. Tall
Used On Metal Framed Patio Doors
For Further Dimensional Information, Please See The Line Drawing
Features, Advantages, & Benefits
Overview
This is a unique back patio door roller assembly with a 7/16 in. thick and 1-11/16 in. diameter concave nylon ball bearing roller. The housing is extruded aluminum 11/16 in. wide and 1-1/2 in. tall with mounting holes on both sides. It fits into the joint of the bottom door rail and the side stile while a drive pin is driven in through frame's side. The side stile may need to be pried apart slightly to install. Used on Daryl, Plaza Door and a variety of other manufacturers.
| Product Name | FHC Sliding Door Roller Assembly 1-11/16" Nylon Ball Bearing |
|---|---|
| Item No | D1591 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1591 |
| Minimum Order Quantity | 1 |
