Item No
D1691
FHC Single 1-1/4" Steel Ball Bearing Roller - C-Tab Style - Adjustable
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- 1-1/4 in. concave (grooved) steel roller
- Ball bearing
- C-tab housing with rear adjust
- As the C tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together
- Housing is 9/16 in. wide, 1-1/16 in. tall and 1-5/8 in. long with an adjustment screw on the back end
- Used on metal framed patio doors
Overview

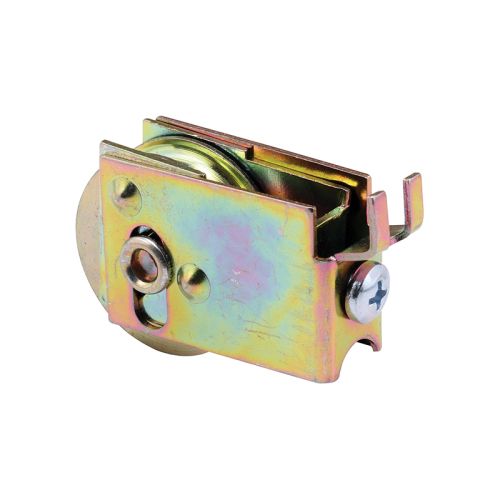

This is a C-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. As the C-tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide and 1-1/16 in. tall with a dimple width of 3/4 in.. Used on Ador Hilite patio doors.
| Product Name | FHC Single 1-1/4" Steel Ball Bearing Roller - C-Tab Style - Adjustable |
|---|---|
| Item No | D1691 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1691 |
| Minimum Order Quantity | 1 |
