Features, Advantages, & Benefits
Item NoD1699

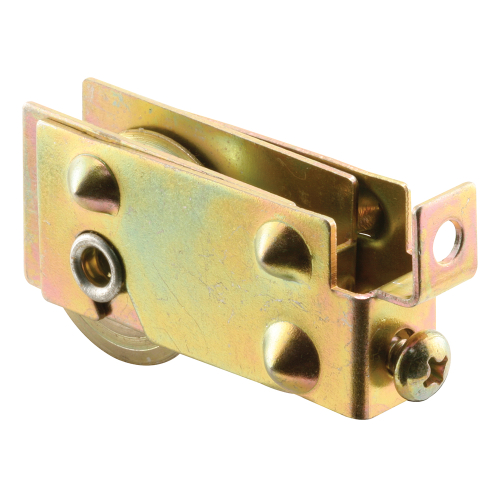

D1699 1-1/8" Steel - Sliding Door Roller Assembly With F-Tab (Single Pack)
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1699
FHC 1-1/8" Steel - Sliding Door Roller Assembly With F-Tab (Single Pack)
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
- Used by a variety of metal framed sliding patio doors
- As the corner screw passes through the F-tab and is then captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/8 in. concave ball bearing roller
- Stamped steel construction with steel ball bearing roller
- Please refer to the line art drawing for dimensions and compare with your needs before ordering
Features, Advantages, & Benefits
Overview
This is an F-tab patio door roller assembly with a 1-1/8 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide with 7/8 in. dimples, 1 in. tall and a rear adjusting screw. Used by a variety of patio door manufacturers.
| Product Name | FHC 1-1/8" Steel - Sliding Door Roller Assembly With F-Tab (Single Pack) |
|---|---|
| Item No | D1699 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1699 |
| Minimum Order Quantity | 1 |
