Features, Advantages, & Benefits
Item NoD1740
D1740 1-1/2" Steel Ball Bearing Sliding Door Roller Assembly
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1740
1-1/2" Steel Ball Bearing Sliding Door Roller Assembly
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
- Used By a Variety of Metal Sliding Patio Door Manufacturers
- As the Corner Screw Passes Through the F-Tab It is Captured By the Side Stile and Bottom Rail as the Screw Draws the Two Sides Together
- 1-1/2 in. Diameter Ball Bearing Concave Roller
- Stamped Steel Housing and Roller
- F-Tab Housing
- Rear Adjusting Screw
- A Phillips Head Screwdriver is Required for Installation
Features, Advantages, & Benefits
Overview

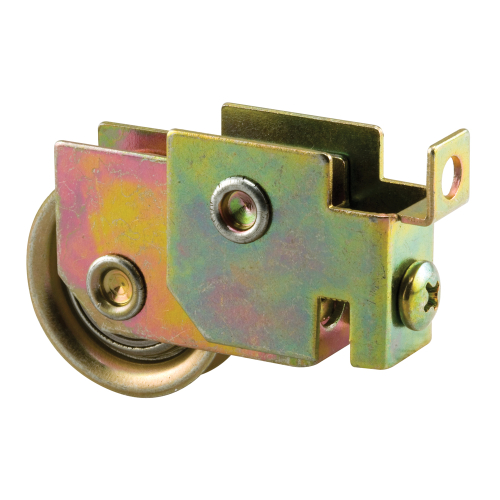

This is an F-tab patio door roller assembly with a 1-1/2 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide with a 3/4 in. flare, 1-1/16 in. tall and a rear adjusting screw. Used by King Mirror and a variety of other patio door manufacturers.
| Product Name | 1-1/2" Steel Ball Bearing Sliding Door Roller Assembly |
|---|---|
| Item No | D1740 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1740 |
| Minimum Order Quantity | 1 |
