Item No
D1773

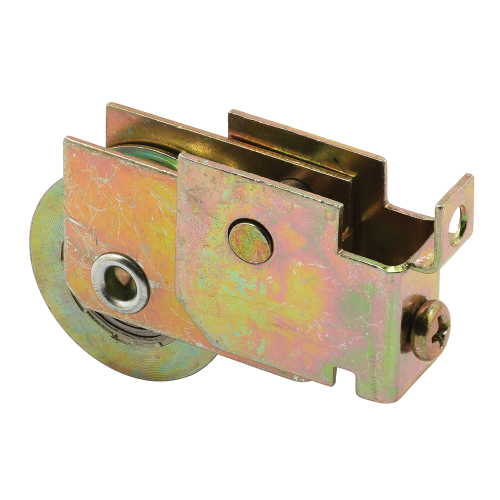

FHC 1-1/4" Steel F-Tab Style Roller With Ball Bearing (Single Pack)
Unit Of Measure PK
Case Quantity 6
Features, Advantages, and Benefits
- Used by Superlite, Fenton and a variety of other sliding patio door manufacturers
- When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- Rear adjustment screw
- Stamped steel housing with ball bearing rollers
- 1-1/4 in. concave roller
- No flare to housing
Overview
This is an F-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide, 1-3/32 in. tall with a rear adjusting screw. Used by Superlite, Fenton and a variety of other sliding patio door manufacturers.
| Product Name | FHC 1-1/4" Steel F-Tab Style Roller With Ball Bearing (Single Pack) |
|---|---|
| Item No | D1773 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1773 |
| Minimum Order Quantity | 1 |
