Features, Advantages, & Benefits
Item NoD1856

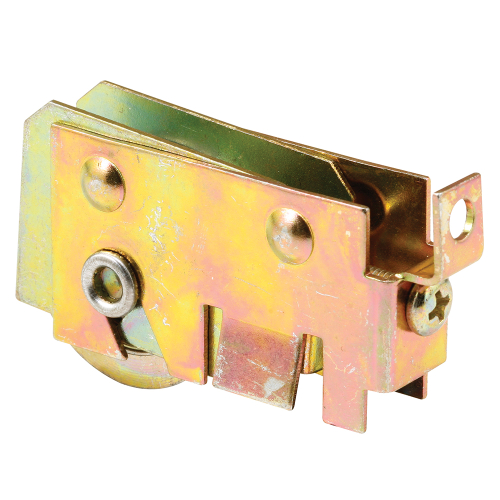

D1856 Single 1-1/4" Steel Ball Bearing Roller - F-Tab Style - Adjustable
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1856
FHC Single 1-1/4" Steel Ball Bearing Roller - F-Tab Style - Adjustable
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
1-1/4 in. concave (grooved) steel roller
Ball bearing
F-tab housing with rear adjustment
When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
Housing is 5/8 in. wide with a 3/4 in. flare, 1-3/16 in. tall and 2-1/8 in. long
Features, Advantages, & Benefits
Overview
This is a F-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 5/8 in. wide with a 3/4 in. flare, 1-3/16 in. tall with a rear adjusting screw. Used by Rylock and a variety of other patio door manufacturers.
| Product Name | FHC Single 1-1/4" Steel Ball Bearing Roller - F-Tab Style - Adjustable |
|---|---|
| Item No | D1856 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1856 |
| Minimum Order Quantity | 1 |
