Features, Advantages, & Benefits
Item NoVEN90CH

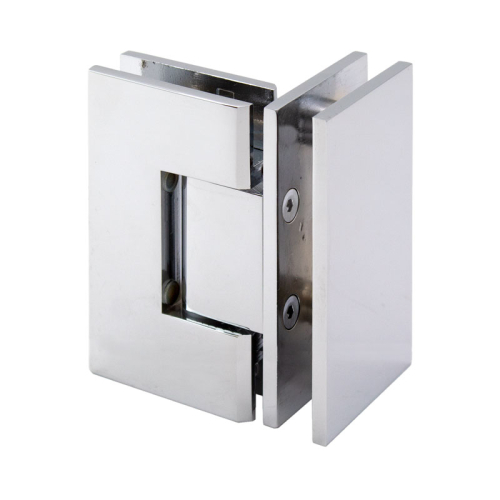

VEN90CH Venice Square Glass To Glass 90 Degree Hinge - Polished Chrome
Unit Of Measure EA
Case Quantity 10
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoVEN90CH
FHC Venice Square Glass To Glass 90 Degree Hinge - Polished Chrome
Unit Of Measure EA
Case Quantity 10
Features, Advantages, & Benefits
NEXT-GEN Includes Factory-Bonded Recessed Gasket (Patent Pending)
For 3/8" to 1/2" Tempered Glass
Solid Brass Construction
Used in 90 Degree Glass-to-Glass Applications
Can Support Larger Doors than Typical Hinges
Easily Converts to 5 Degree Offset
Features, Advantages, & Benefits
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
| Product Name | FHC Venice Square Glass To Glass 90 Degree Hinge - Polished Chrome |
|---|---|
| Item No | VEN90CH |
| Weight | 2.000000 |
| Select Your Color/Finish | Polished Chrome |
| Glass Thickness | 3/8" or 1/2" |
| Case Quantity | 10 |
| Compare To | V1E092CH |
| Catalog Page | FSH24 p. 24 |
| Degree | 90 Degree |
| Material | Solid Brass |
| Maximum Door Width | 36" (2 or 3 Hinges) |
| Minimum Order Quantity | 1 |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" (Sidelite), 2-5/16" (Door) |
| Profile | Square |
| Warranty | 15 - Year Warranty |
| Weight Capacity | 2 Hinges/110 lb, 3 Hinges/140 lb |
